CHEVROLET/GMC 2500/3500HD 4WD LONG TRAVEL KIT 2001-2010

Original price $10,500.00 - Original price $14,510.00
Original price
$10,500.00
$10,500.00 - $14,510.00
Current price $10,500.00

Kibbetech 01-10 Silverado/Sierra 2500/3500HD 4WD Long Travel Kit

The front 4x4 LT kit includes;

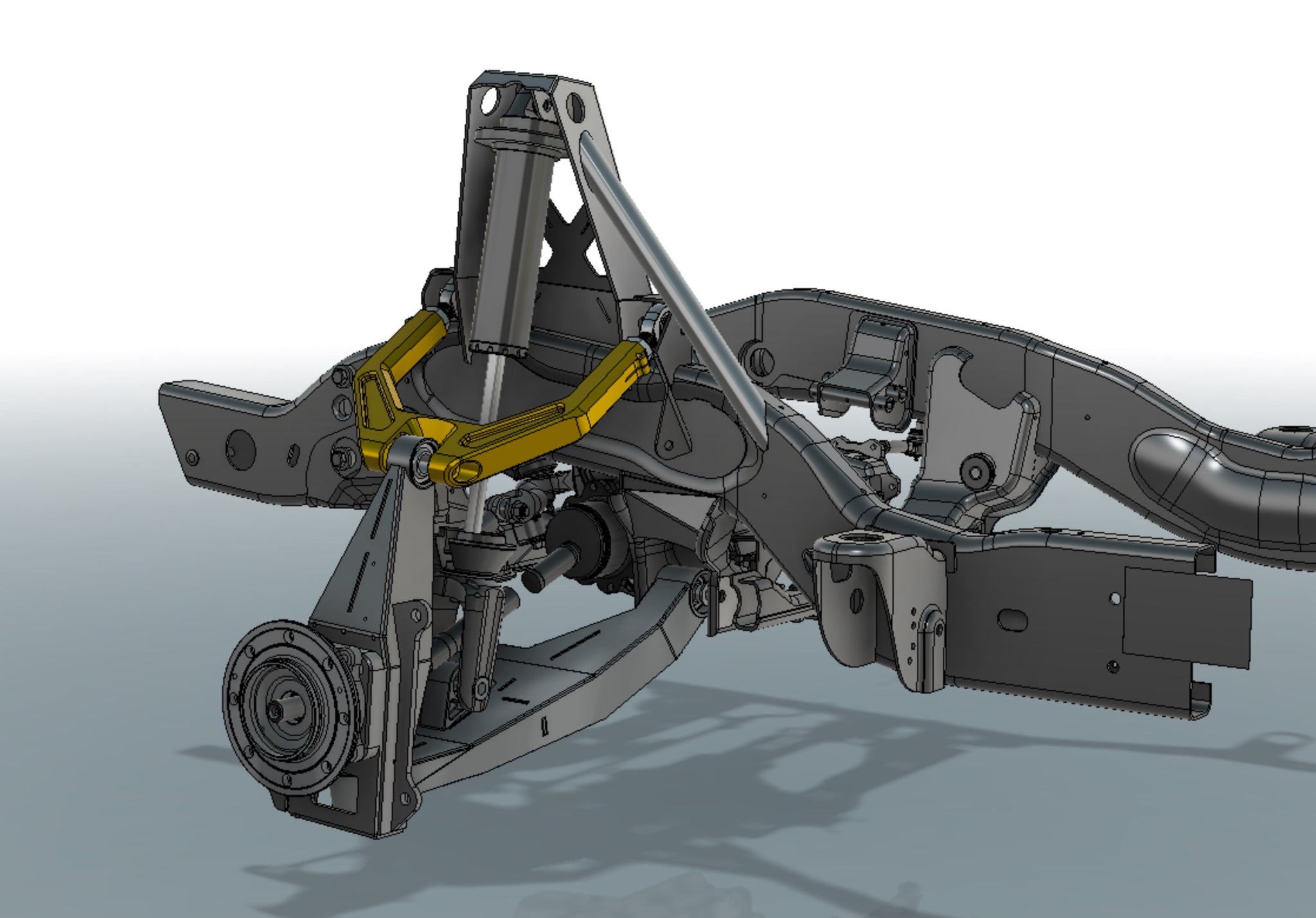

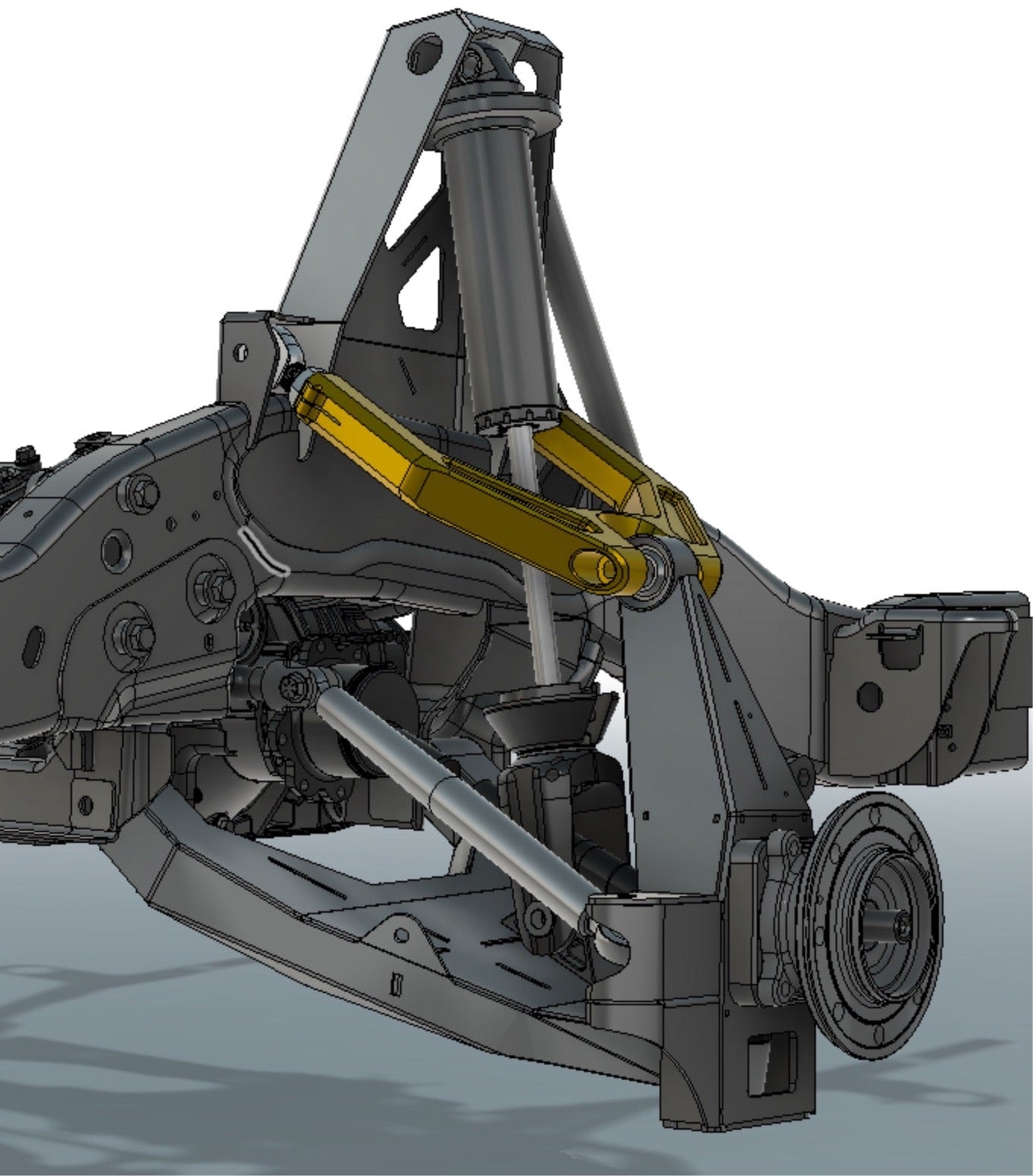

First 2 cad pictures represent the new style kit!
All new design will feature taller spindle with upper a-arm mount ON TOP of the chassis and better geometry like the 11-19 2500 kit.

New style Billet upper control arms
New style Billet tie rods
Fabricated 4130 lower control arms (updated design)
Fabricated 4130 spindles (updated design)
Fabricated 4130 weld in shock mount with integrated a arm mounts
All rod ends, uniballs, steering clevises and stainless misalignment spacers


Now comes with all RPI 12pt aircraft hardware +$1750 VALUE
Limit straps included
Will work on 2wd and some 1500HD models
Retains factory hubs and brakes
The kit requires and includes custom 300m axles built to spec

SPECS

  • 12'' travel with 8'' stroke shock
  • Up to 16'' travel with 10'' stroke shock-This requires moving of EVERYTHING in wheel well area for shock mount room and tire clearance
  • Moves hub center 2'' forward
  • Increases track width to about 92''
  • Up to 40'' with a lot of work
  • Clears 37'' tire with minimal work
  • Requires fiberglass fenders

SHOCK SPECS-

When choosing with shocks you will be ordering a set of KING 3.0''x8'' coilovers with compression adjusters GOLD anodize, Black cerakote body, Clevis shock end with axle pass through, remote Gold resi.
Extra options are available at extra cost.

  • NO REFUNDS!
  • NO RETURNS!
  • THE VENDOR PARTS FOR THIS KIT ARE ALL BUILT TO ORDER!
  • SHOCKS ARE 6+ MONTHS OUT SO WE RECOMMEND ORDERING NOW!
