Regular price $34,500.00 Sale

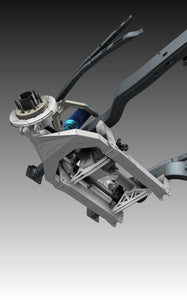

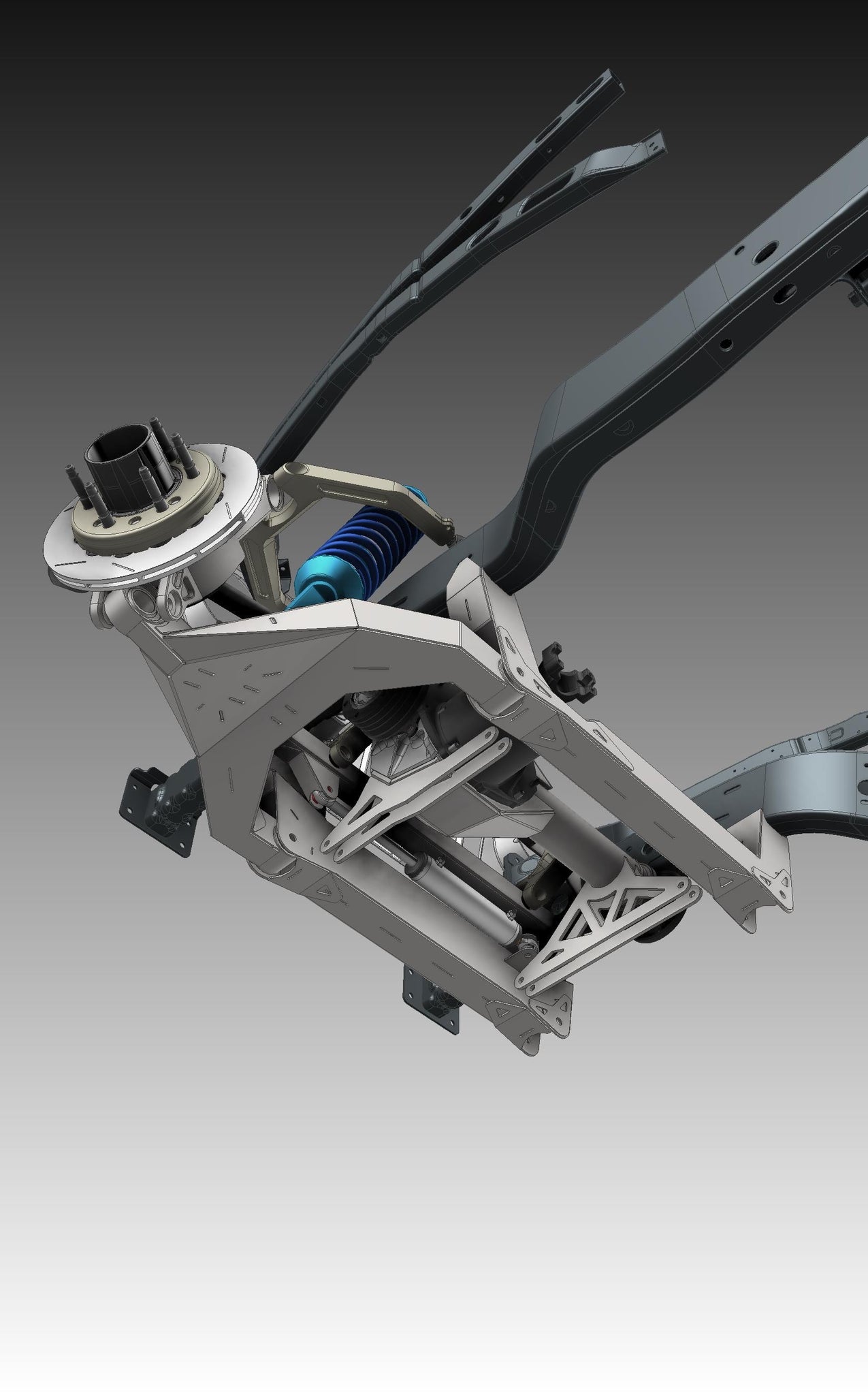

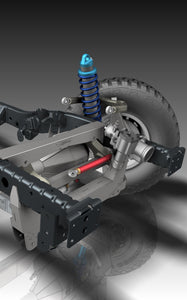

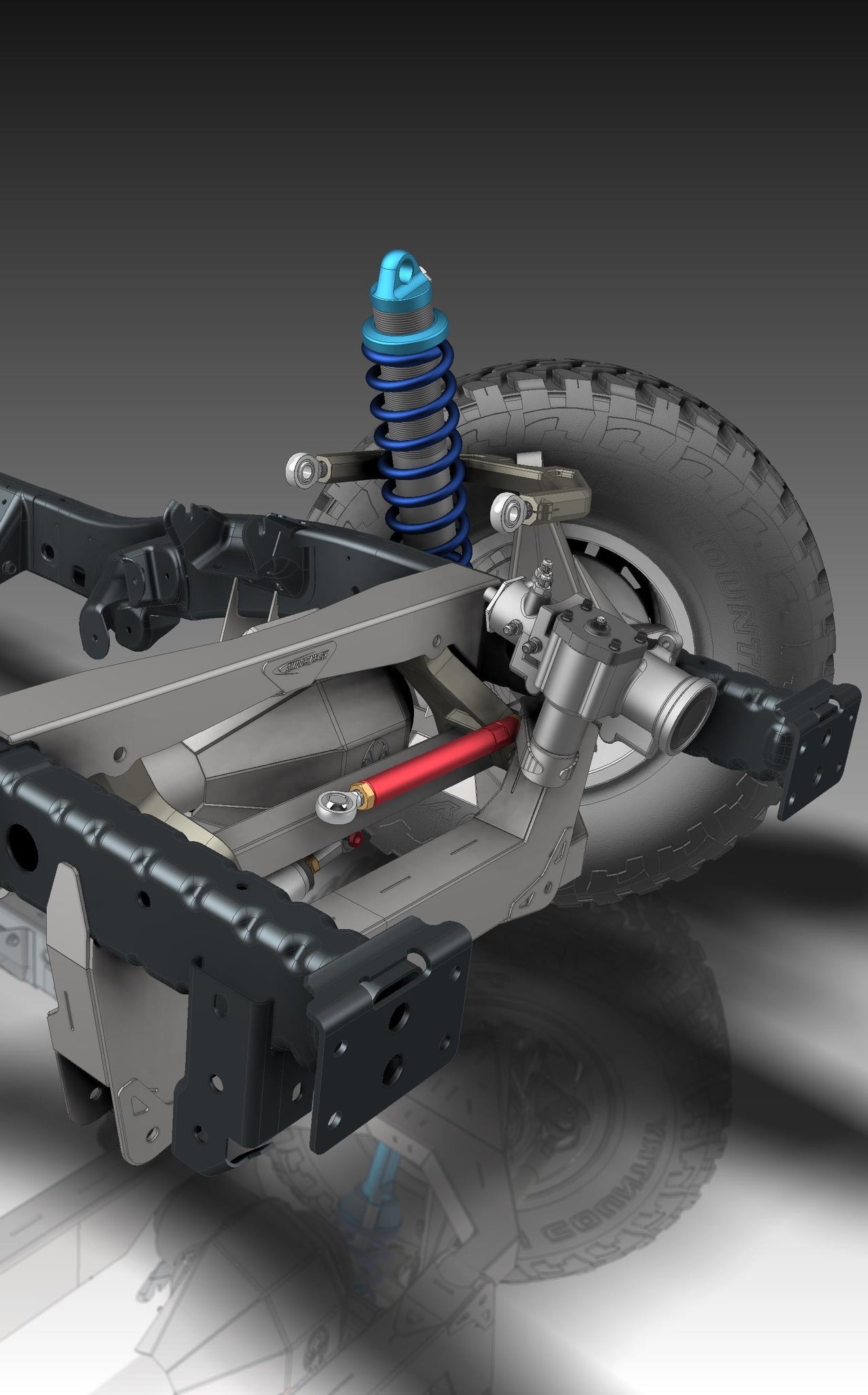

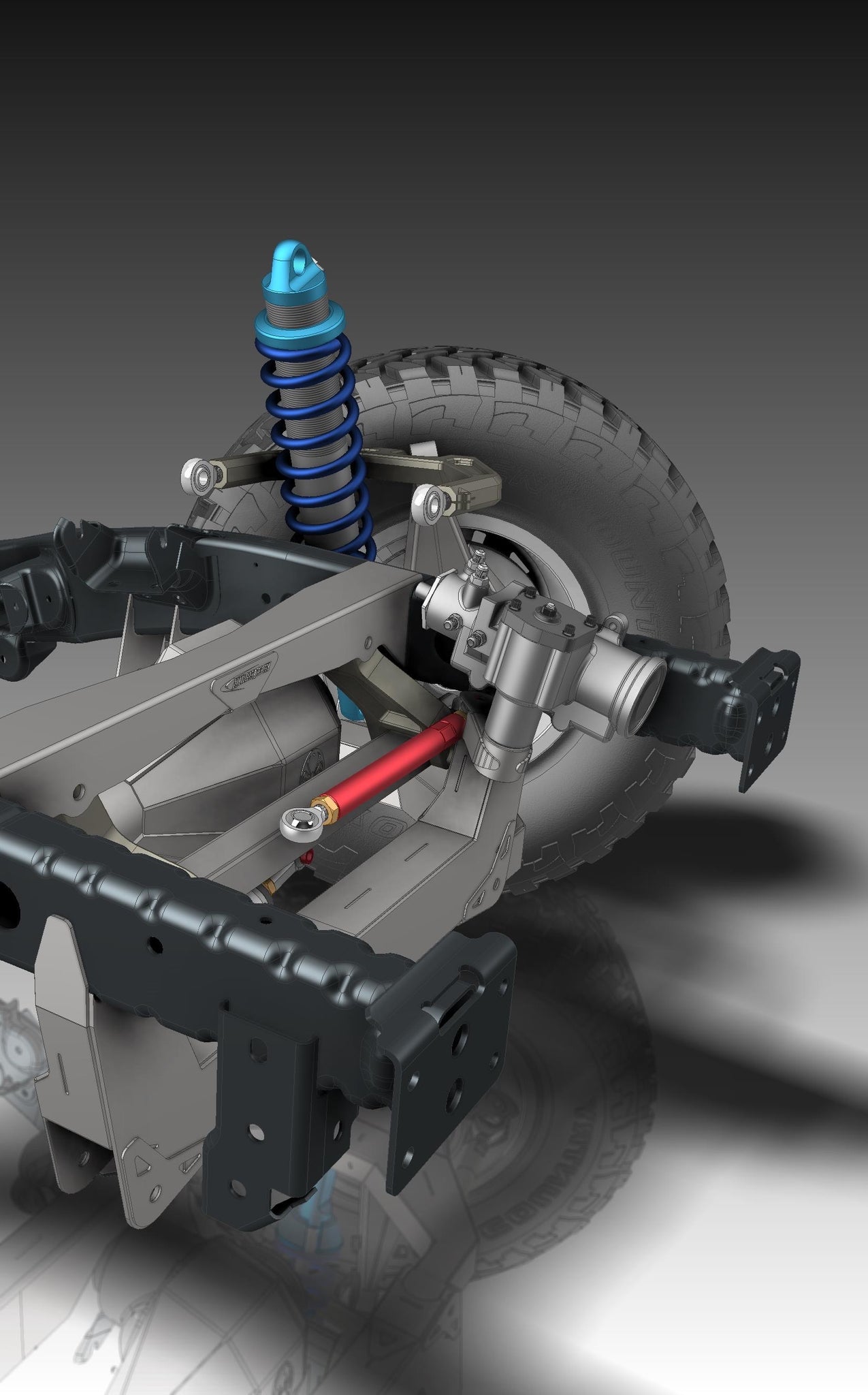

Converts your straight axle Jeep JK to independent front suspension.

Up to 16” wheel travel

86” track width

Recommend minimum 37” tire

Requires after market radiator

Requires shock mount fabrication and extensive fabrication to chassis

All designed, machined, fabricated and welded in house.

Many different options but includes the following parts built by us;

  • Billet upper a arm
  • Billet tie rods
  • Billet steering swingers
  • Billet drag link

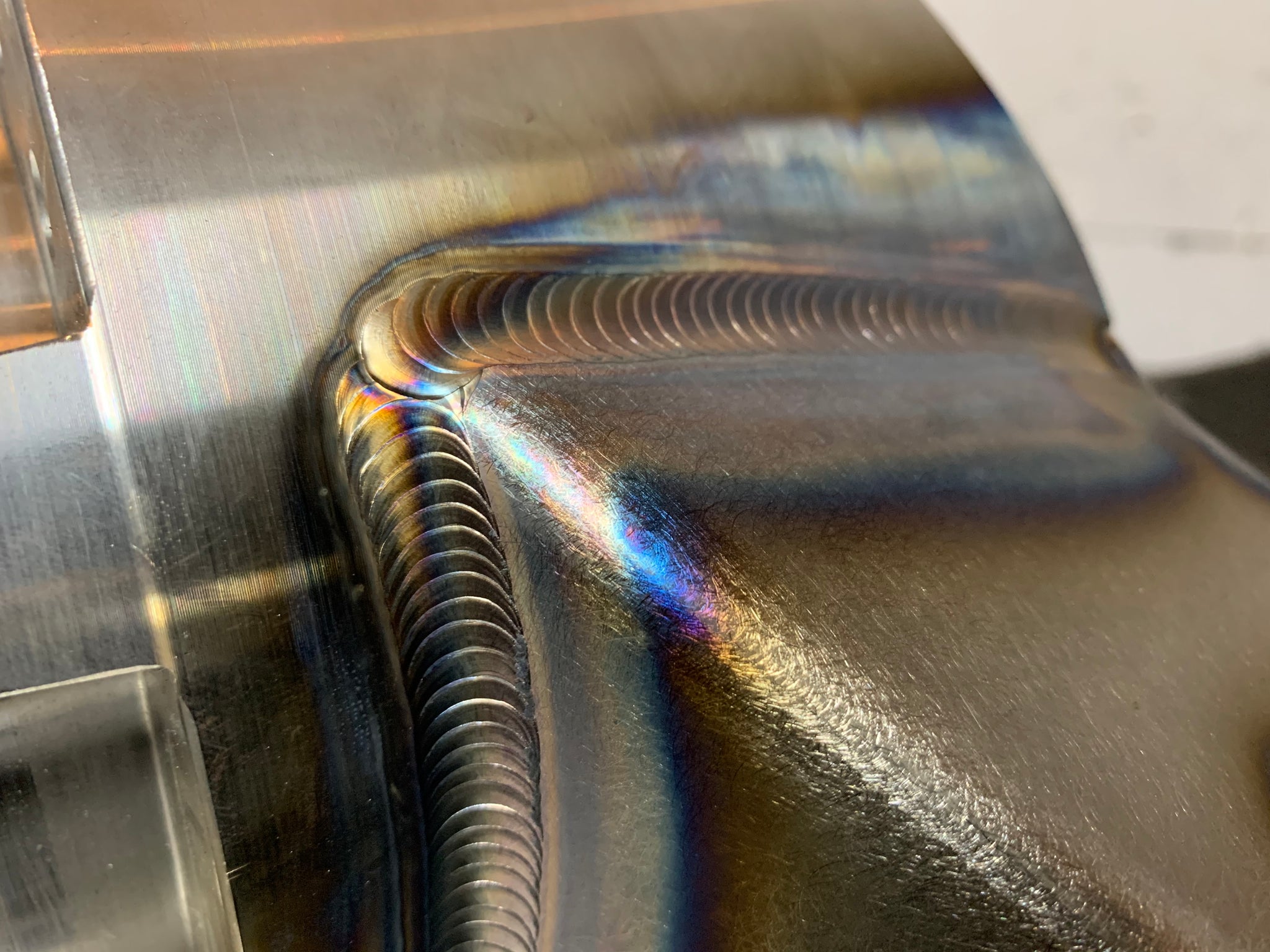

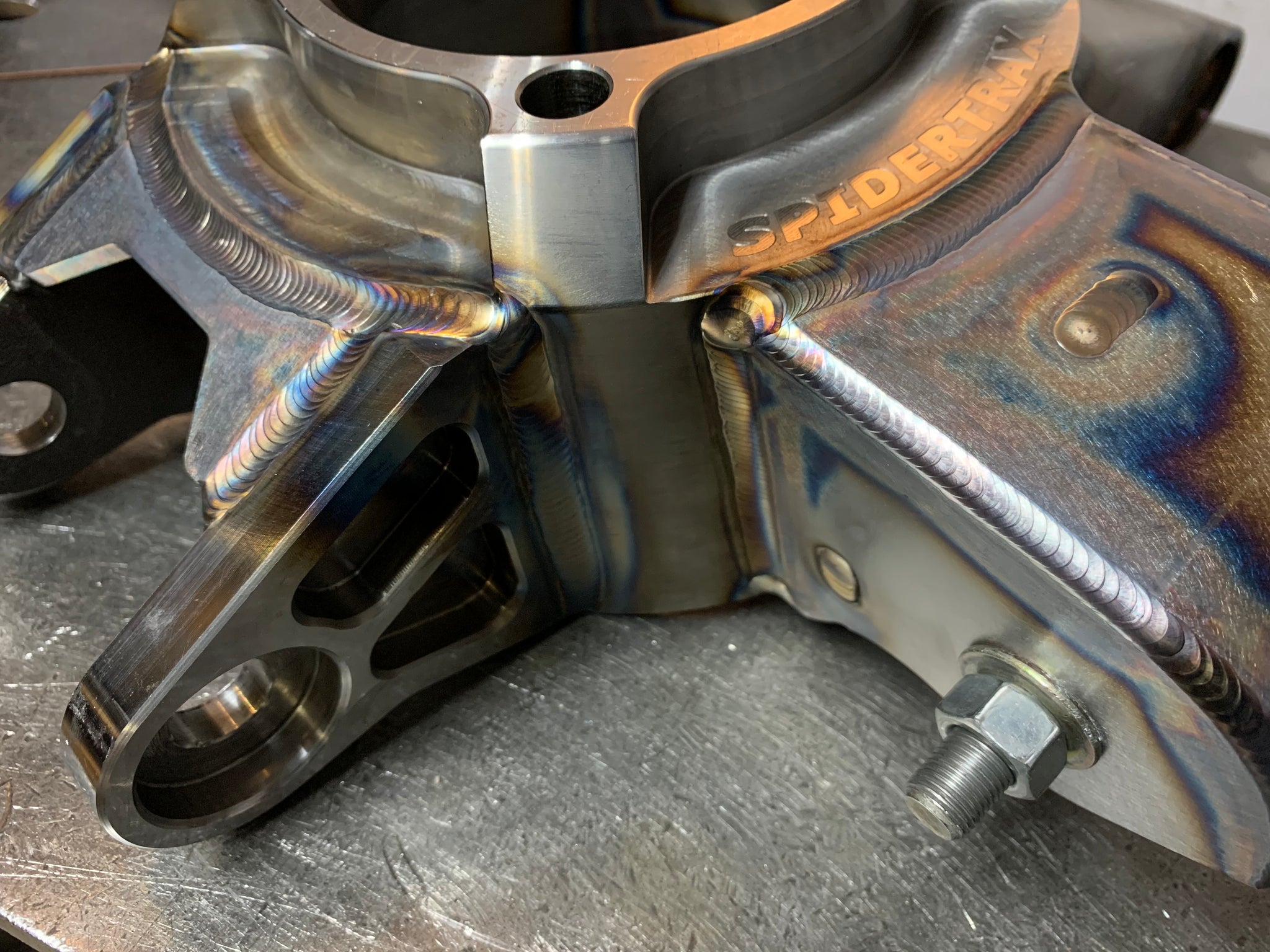

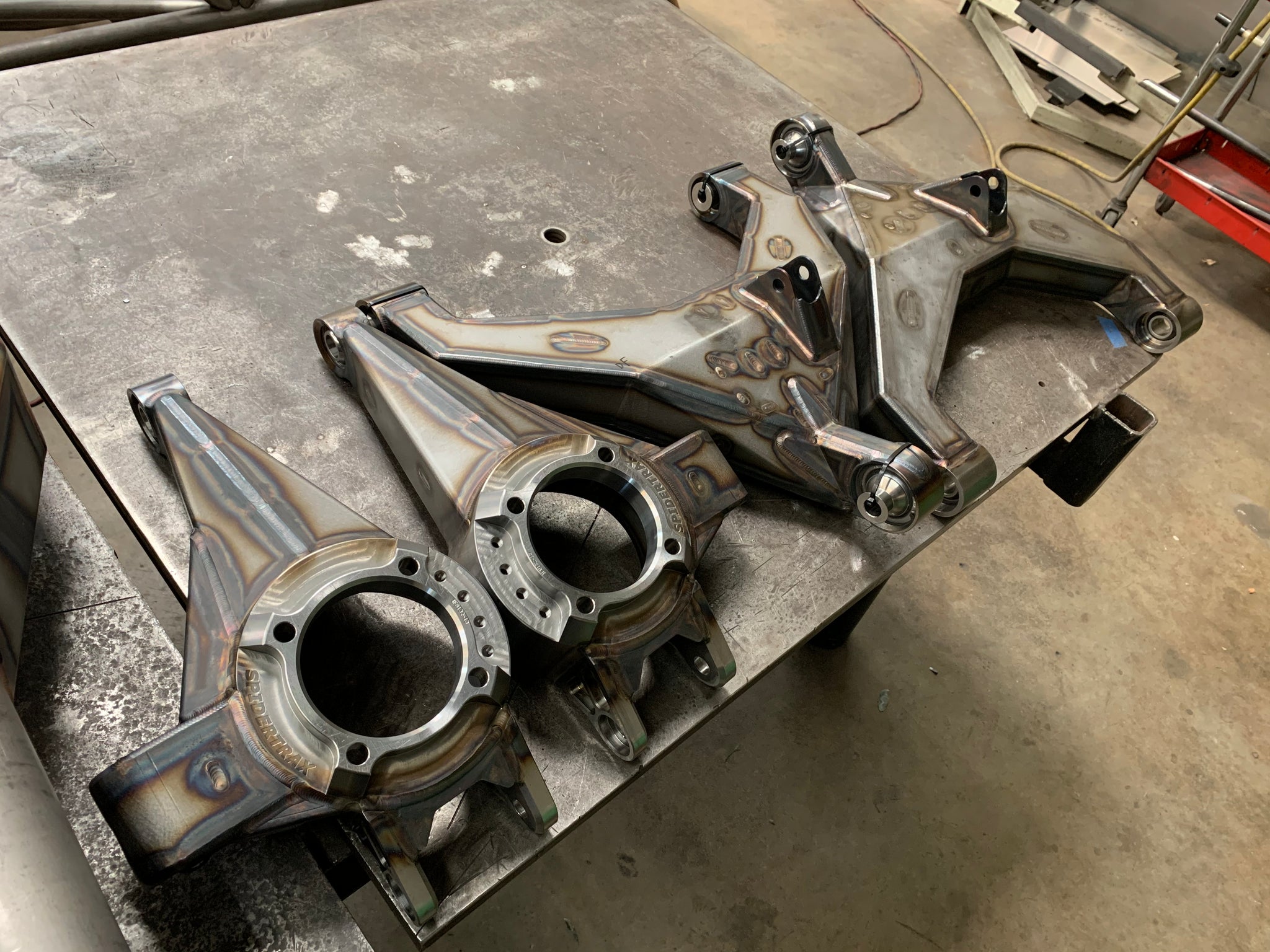

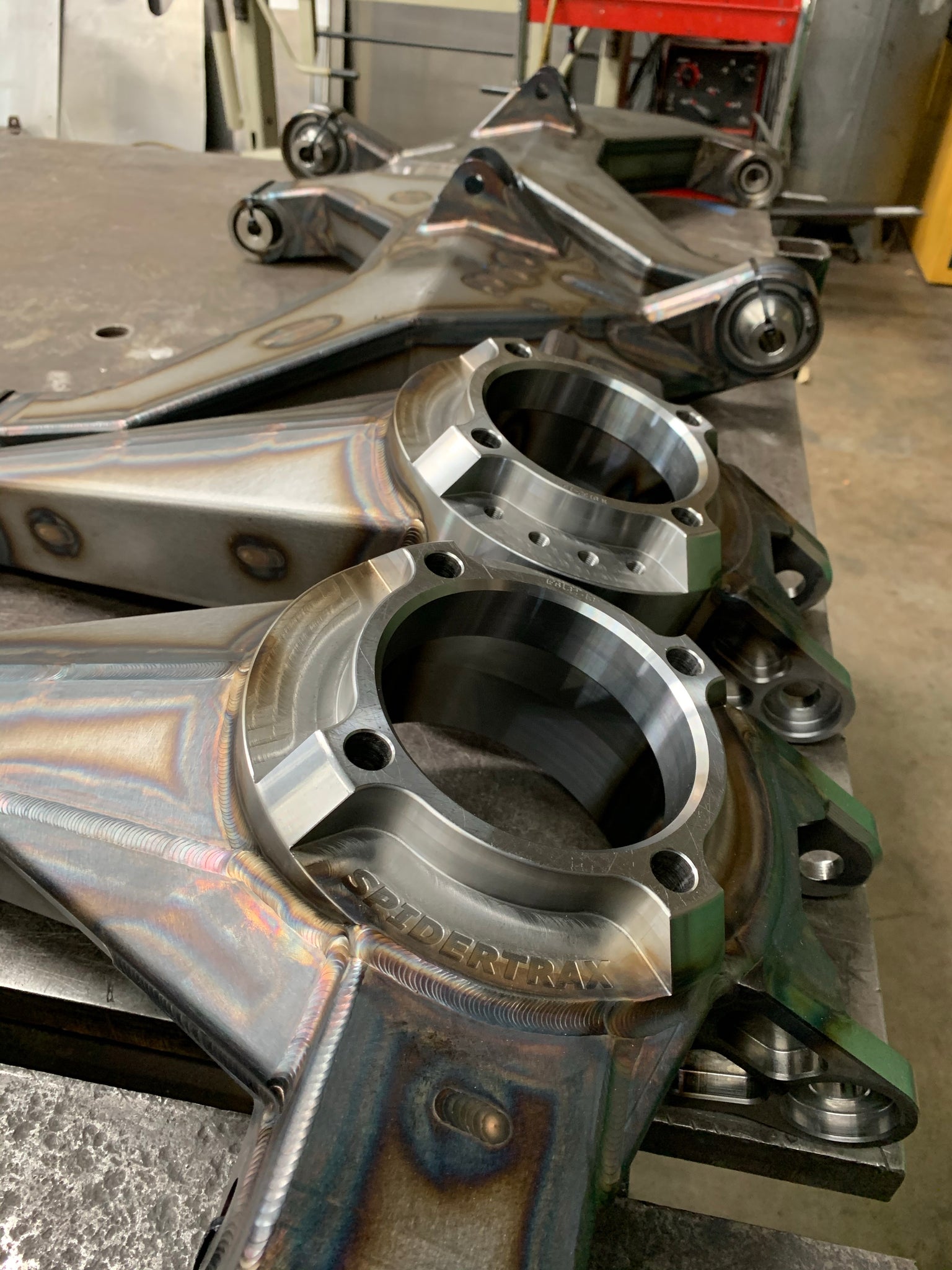

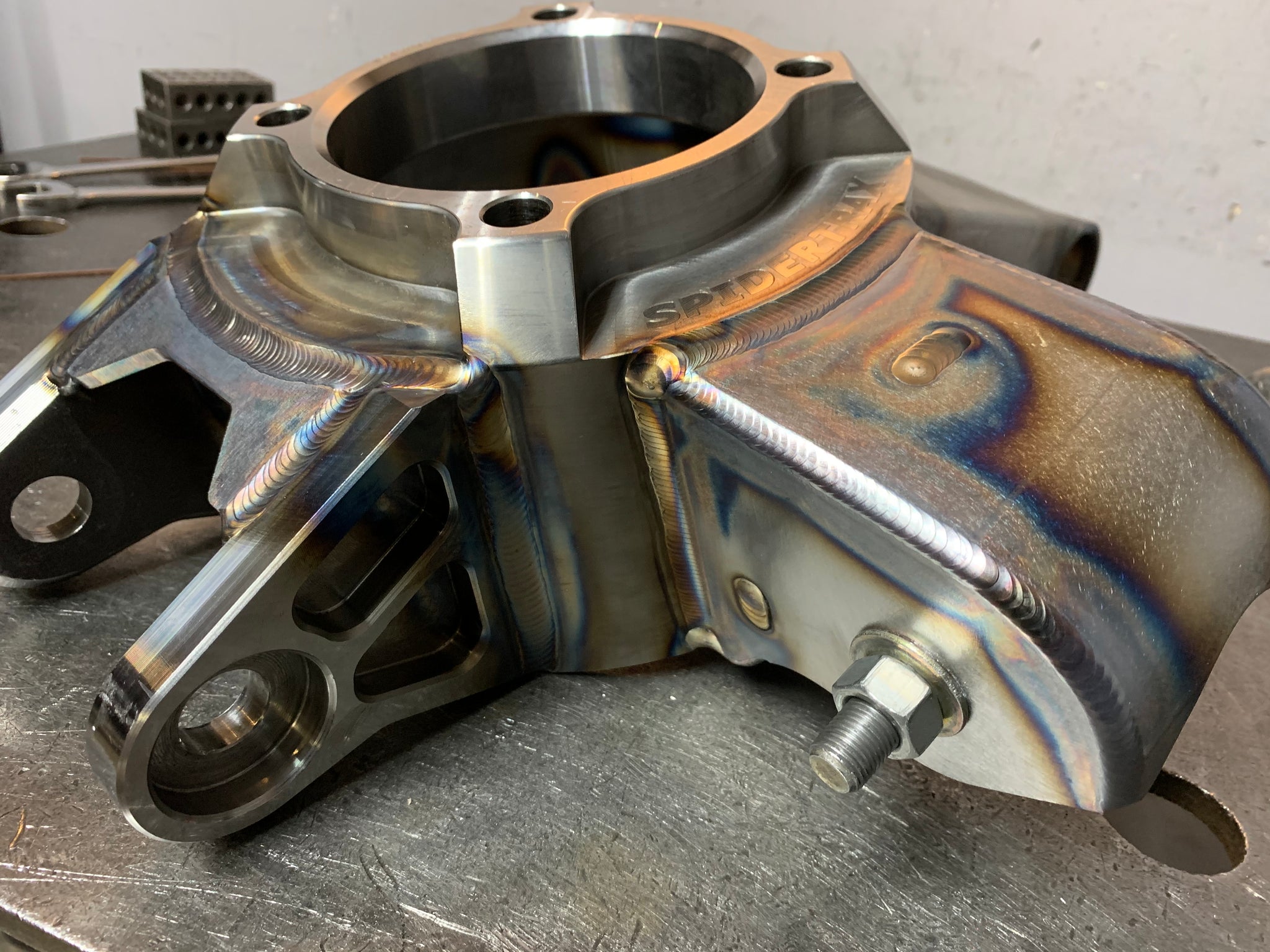

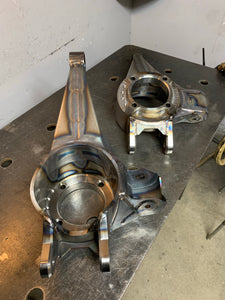

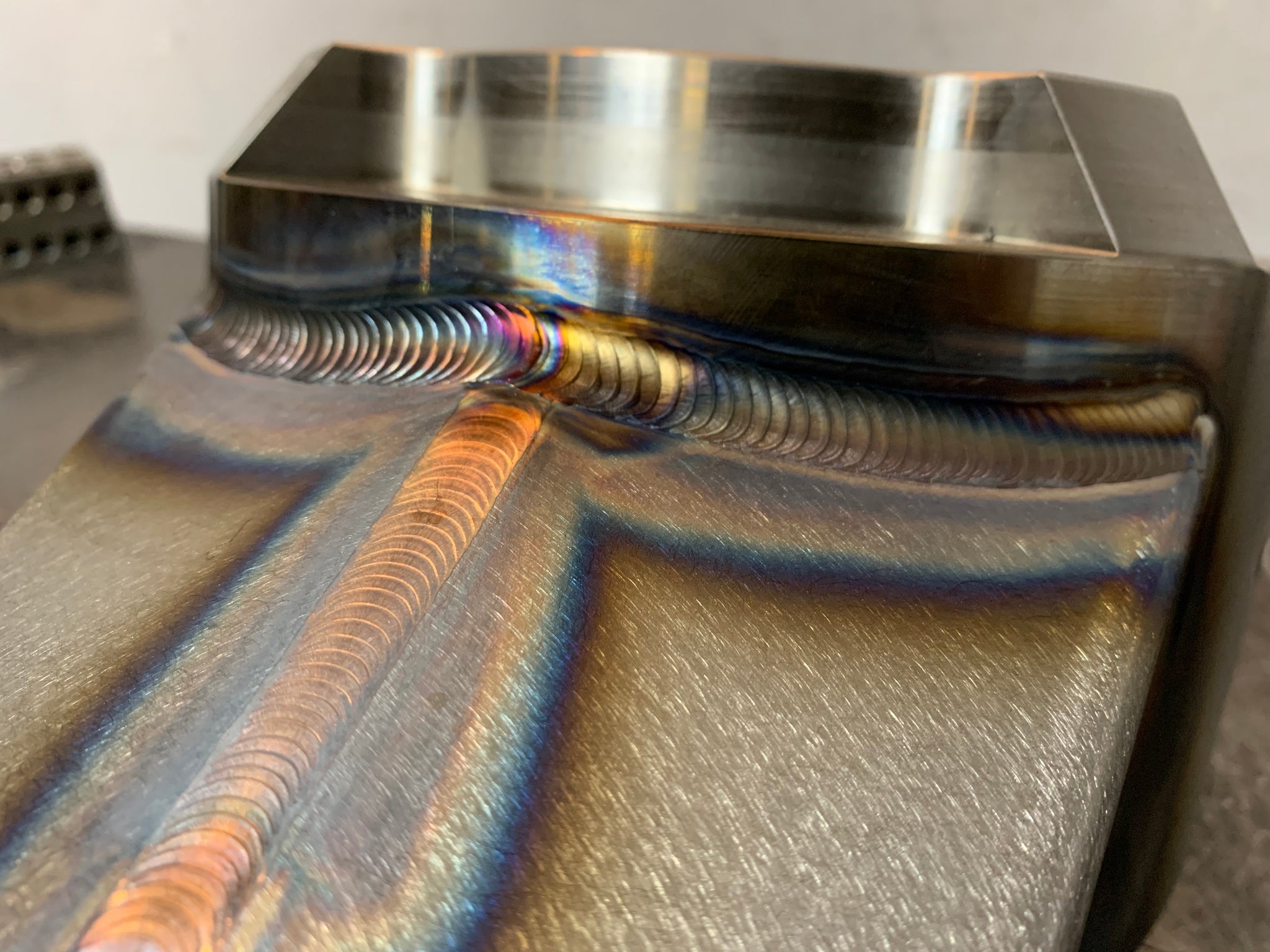

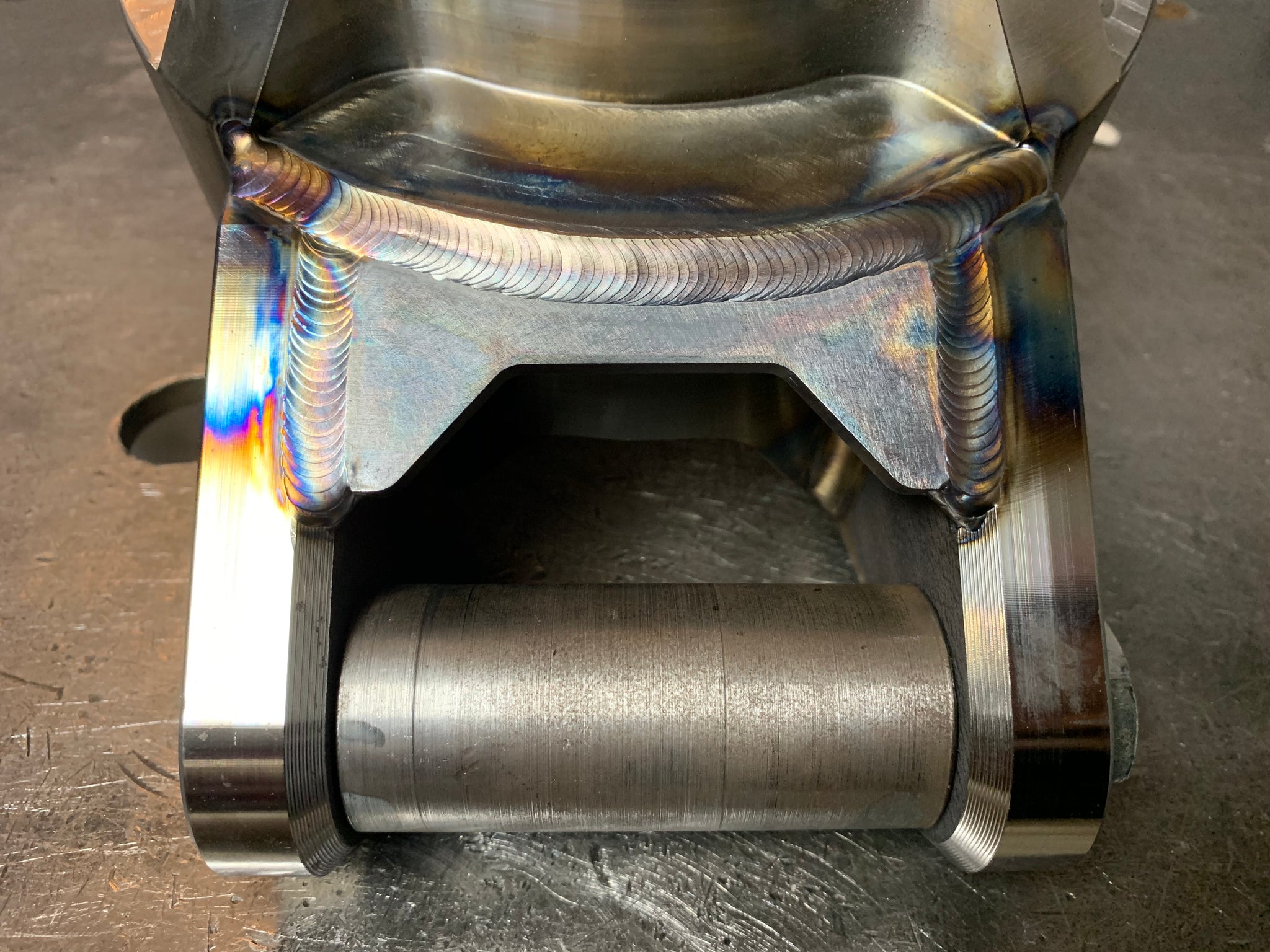

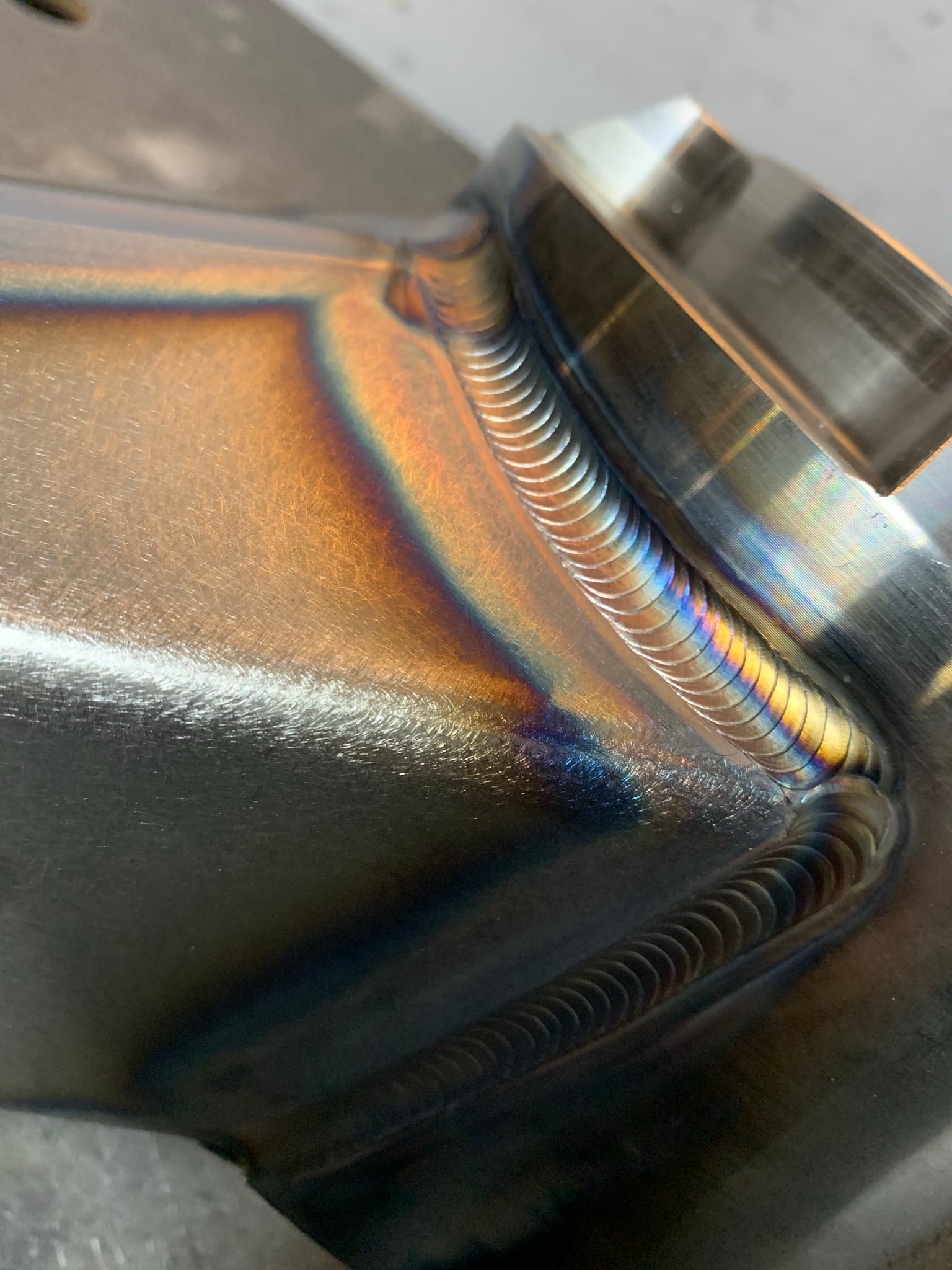

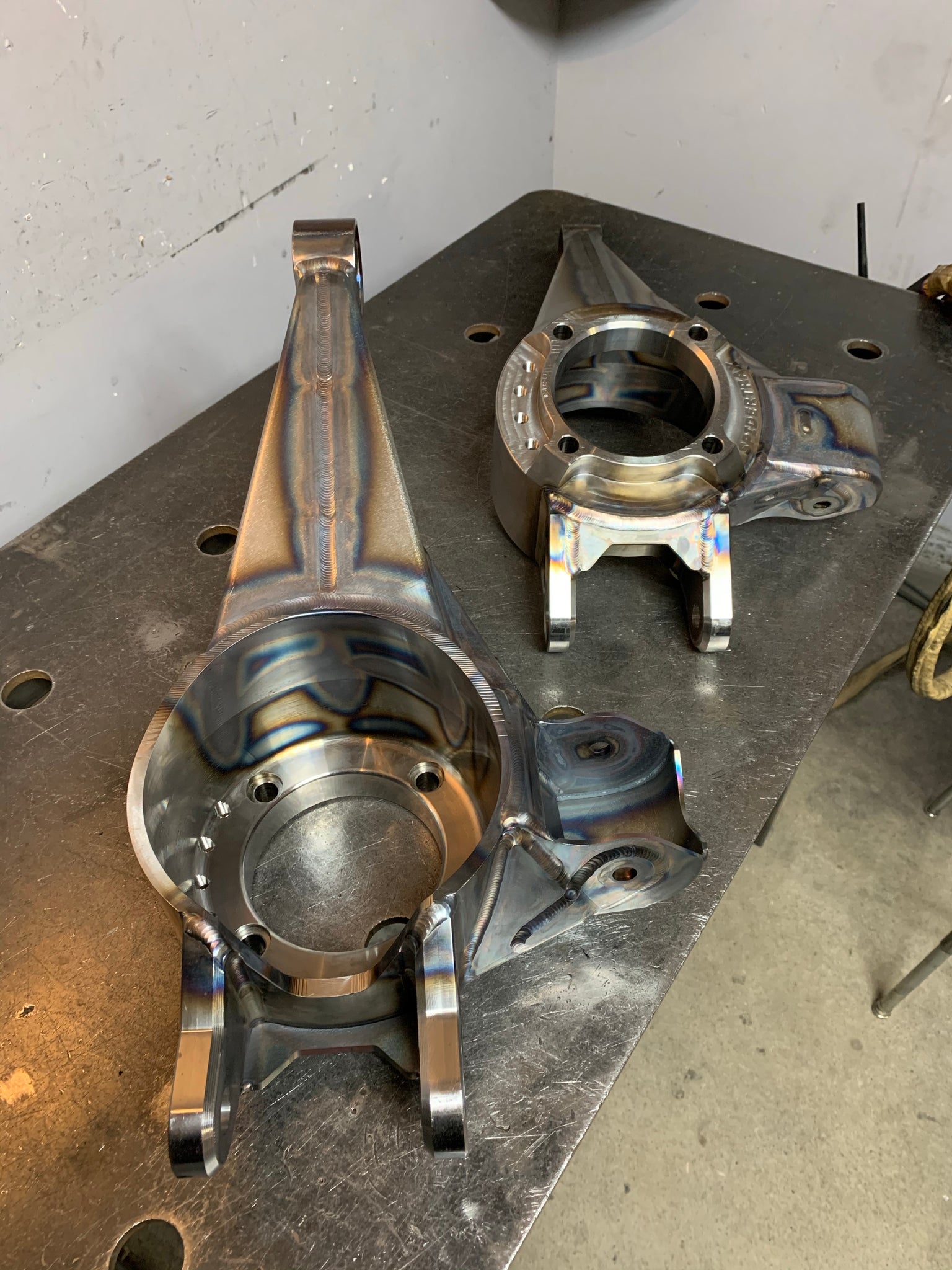

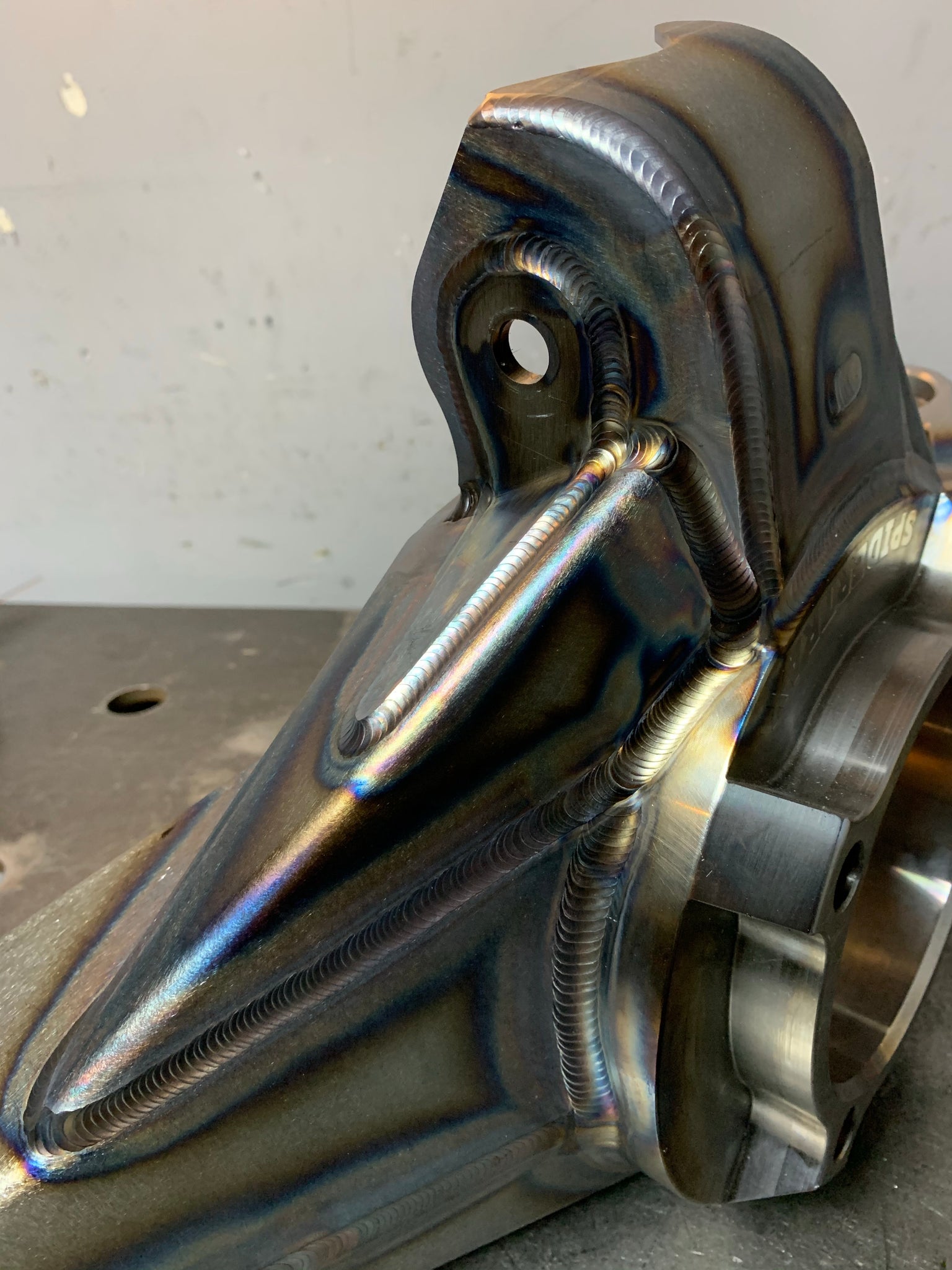

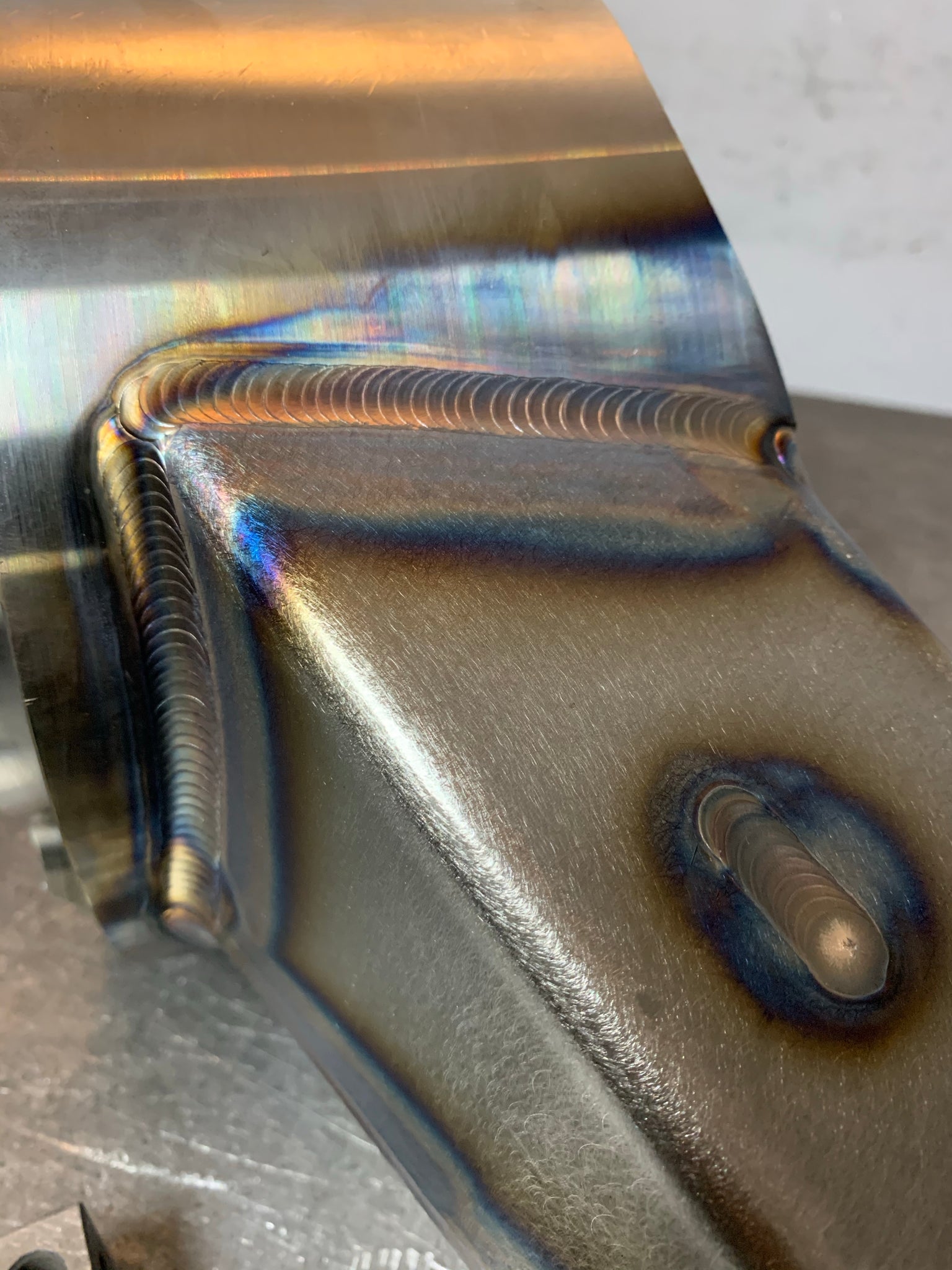

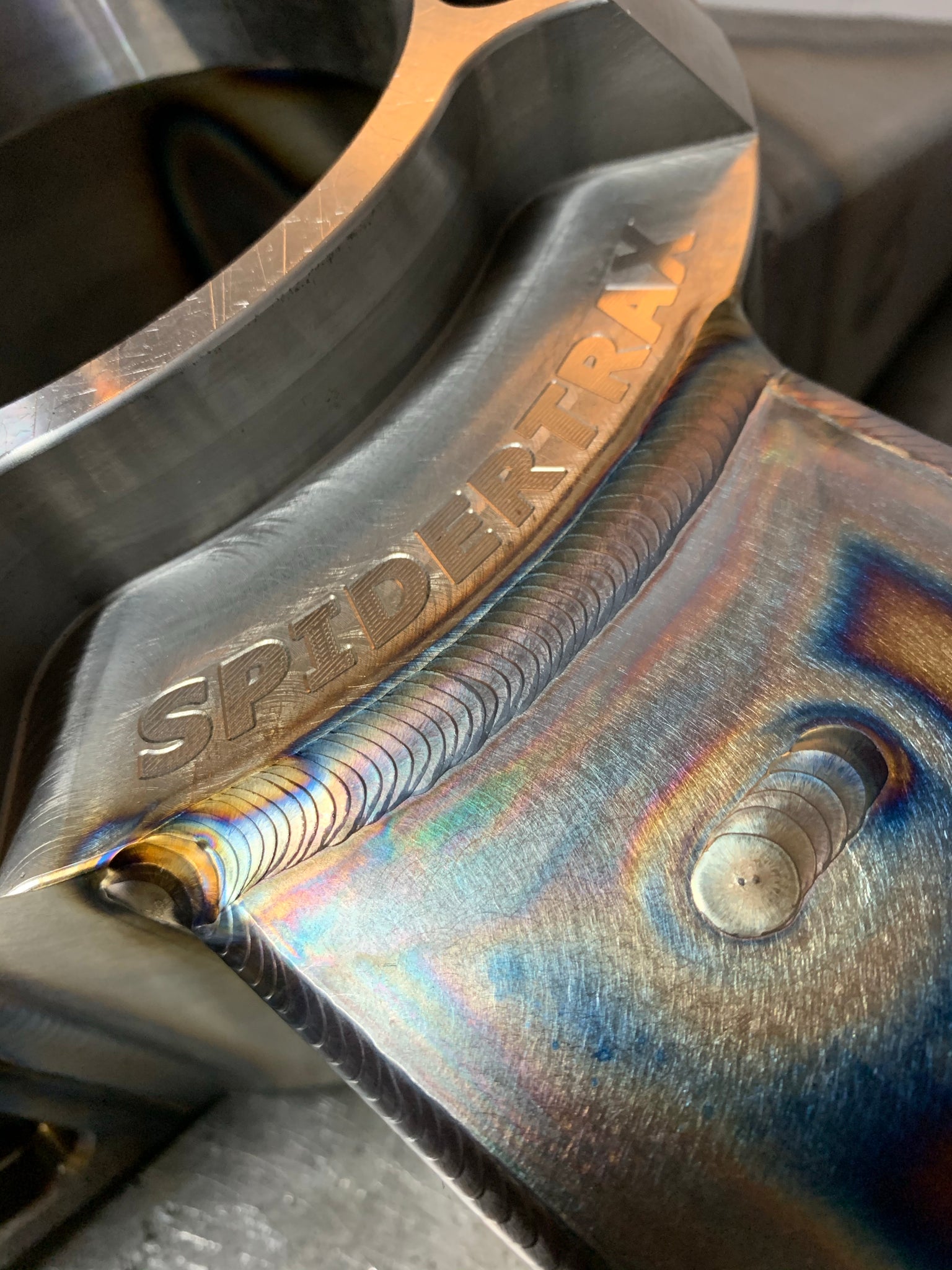

  • Fabricated 4130 tig welded uprights utilizing modified spidertrax 4130 machined bells and 1” upper uniball

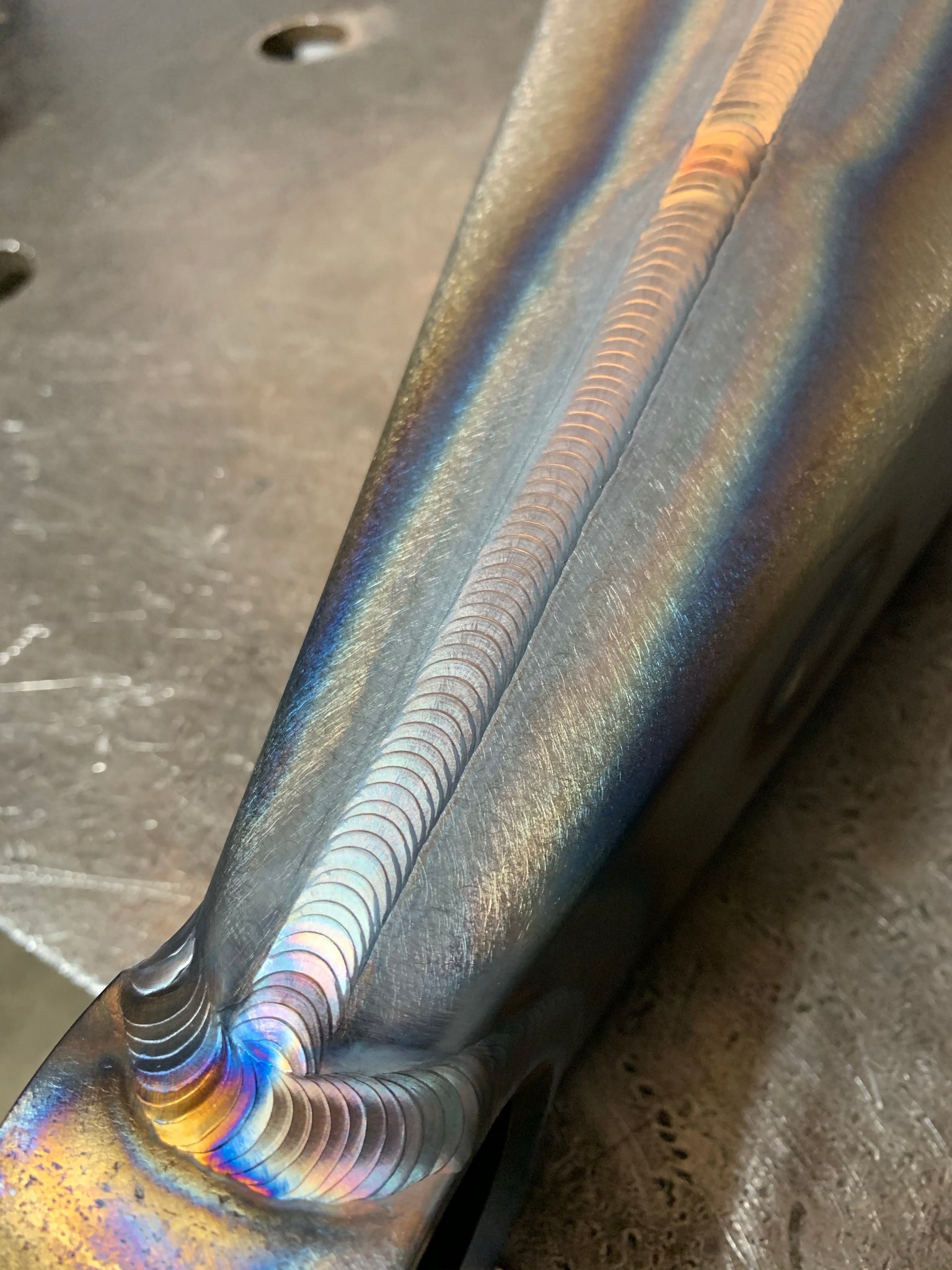

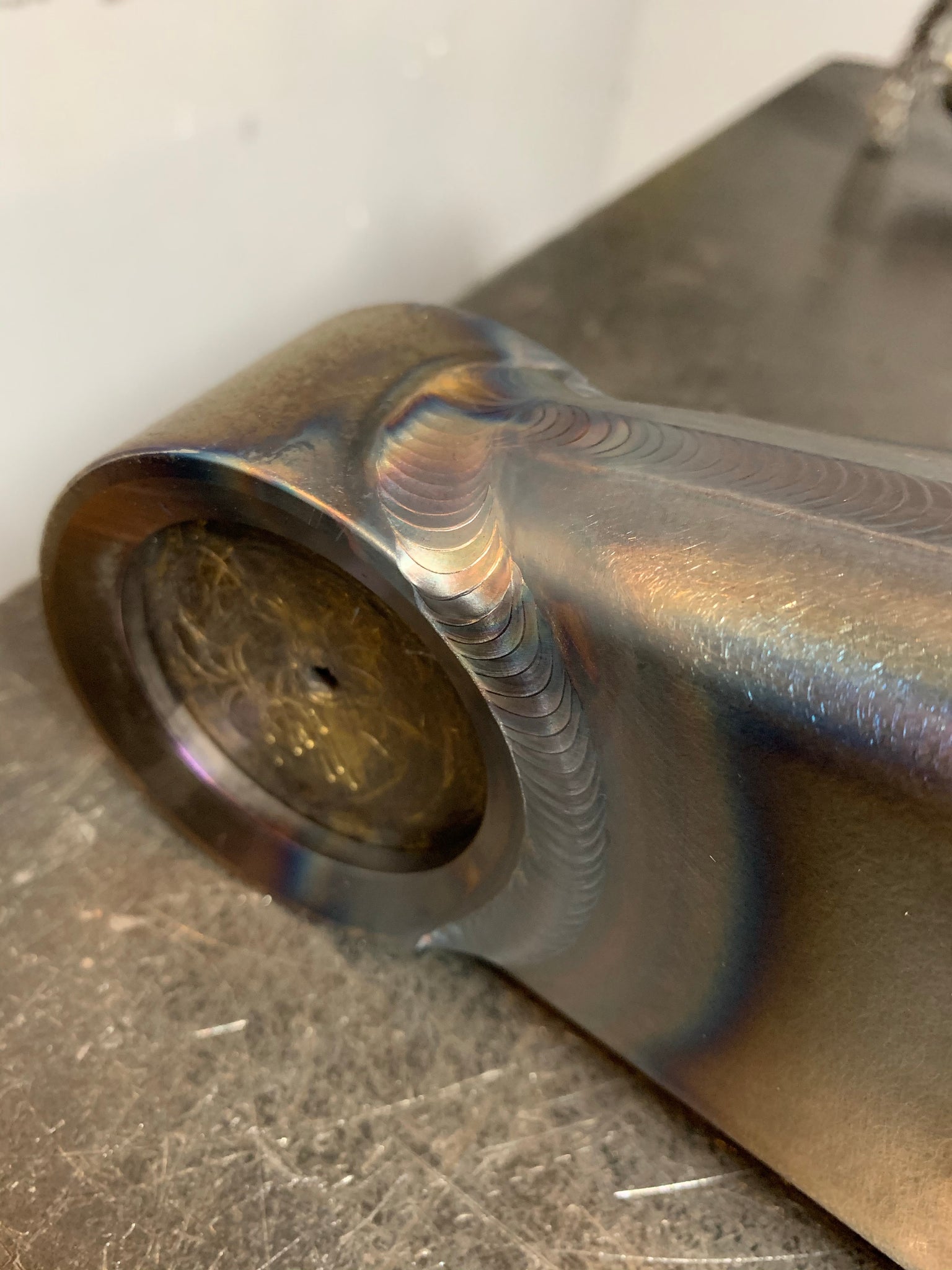

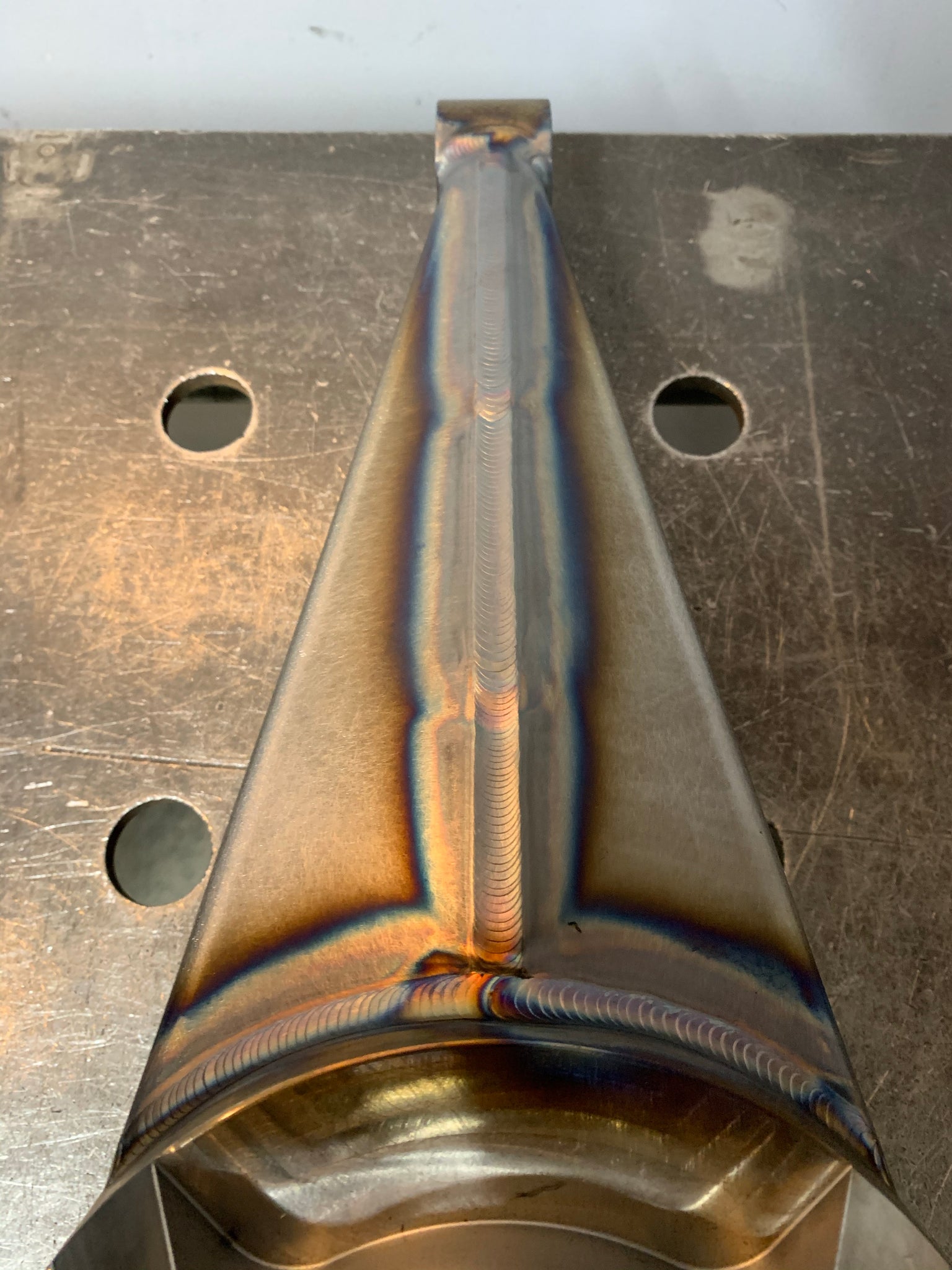

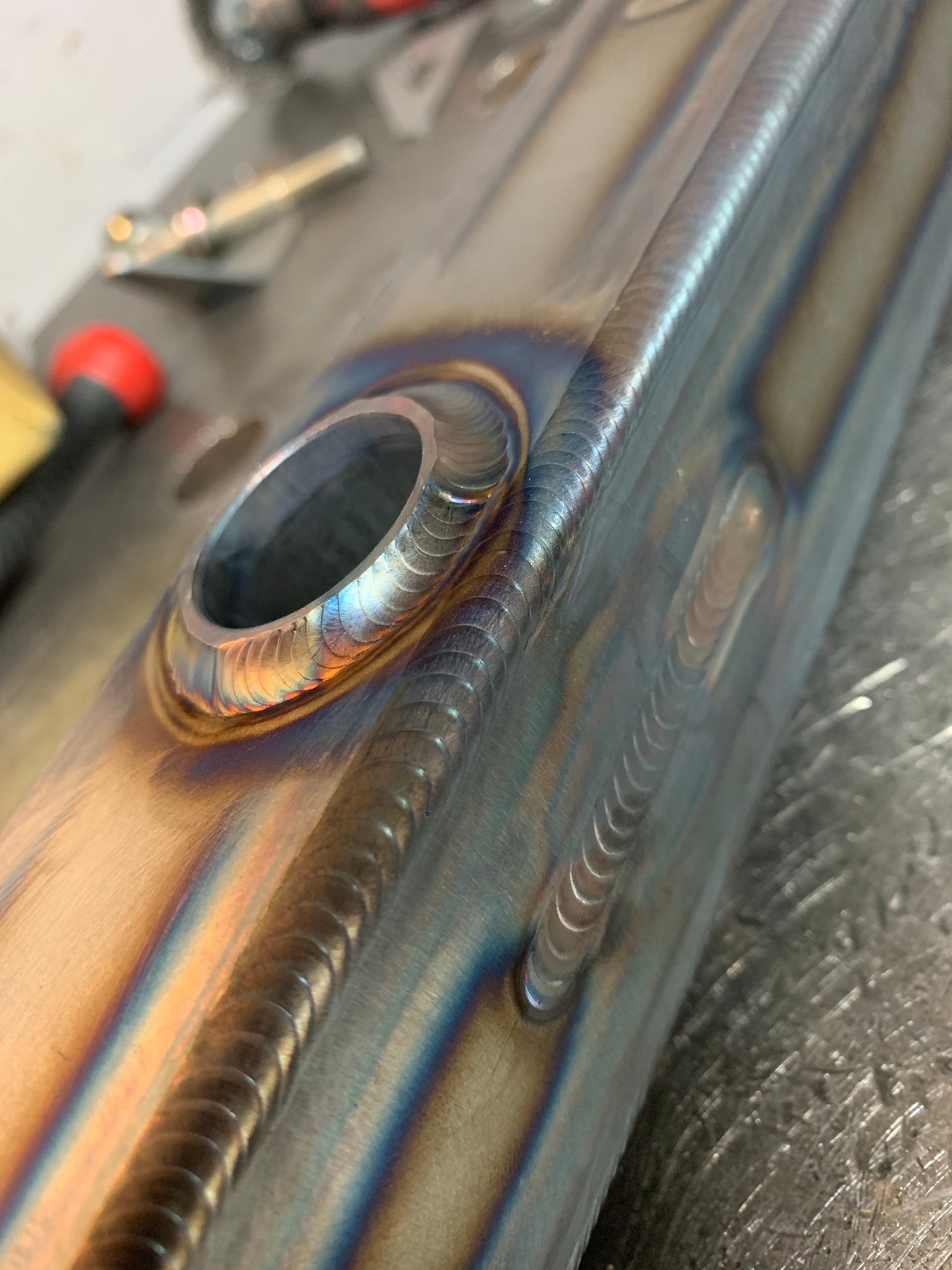

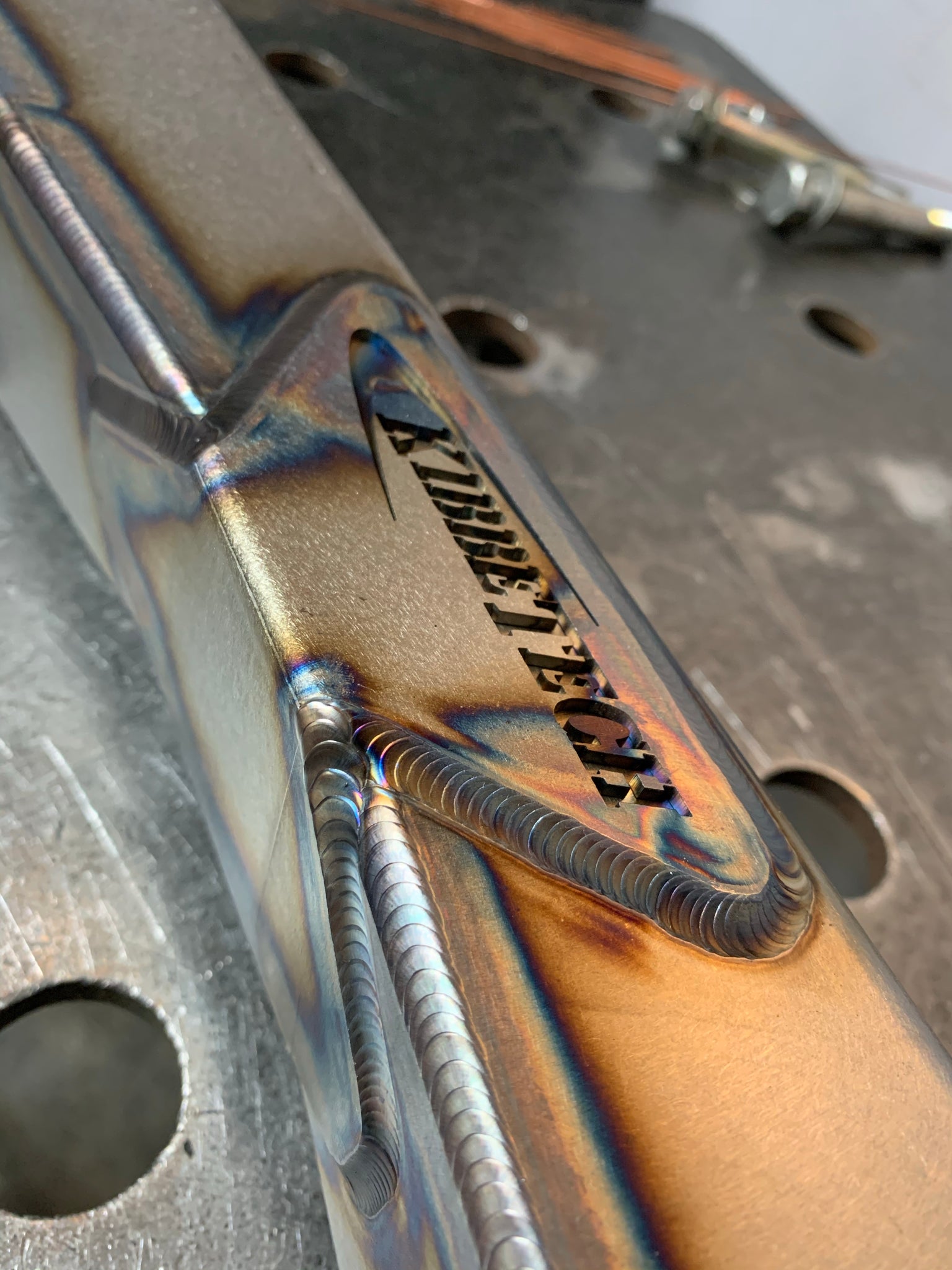

  • Fabricated 4130 tig welded lower a arms utilizing 1.5” uniballs at upright and 1” uniballs at chassis

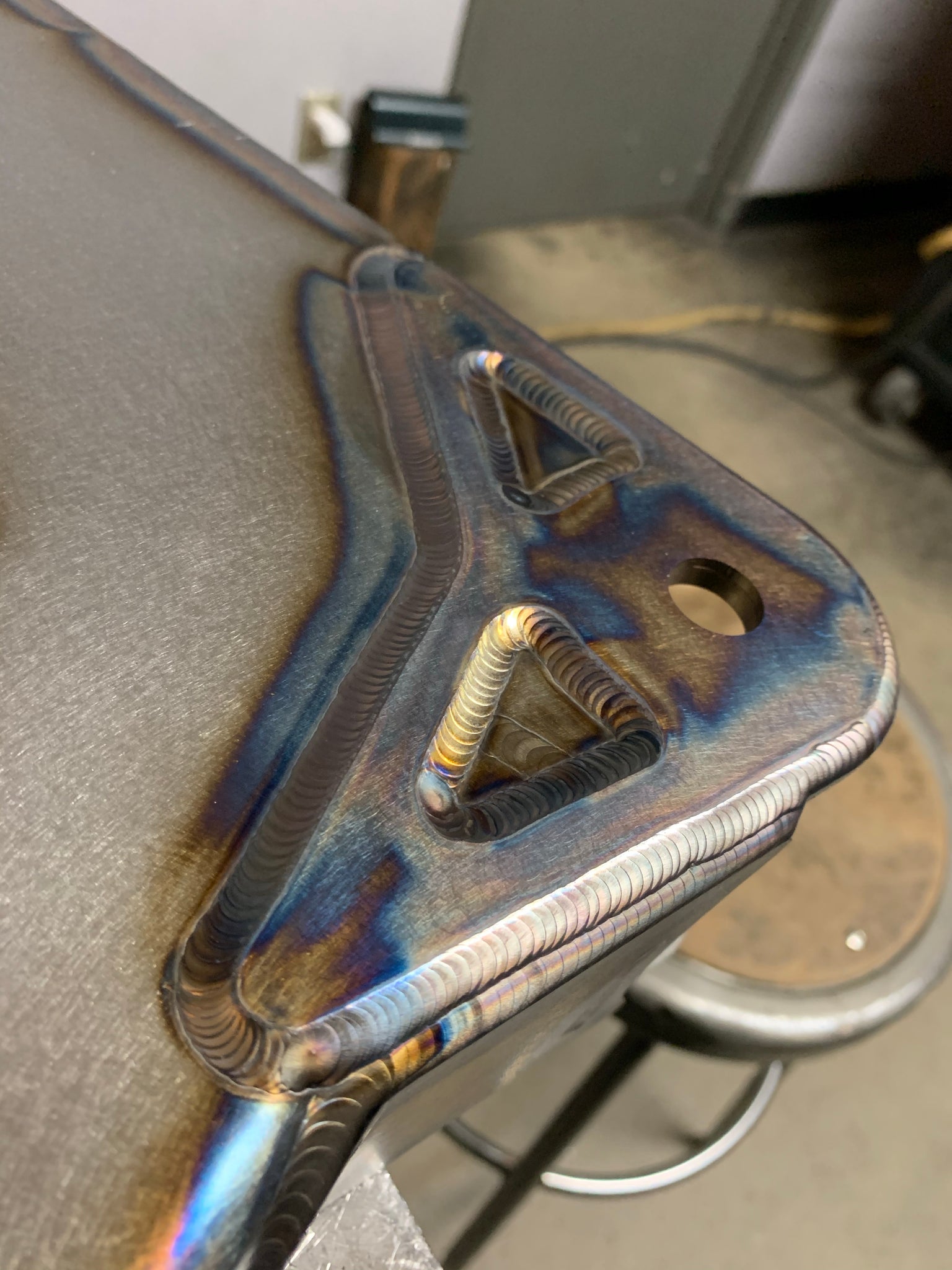

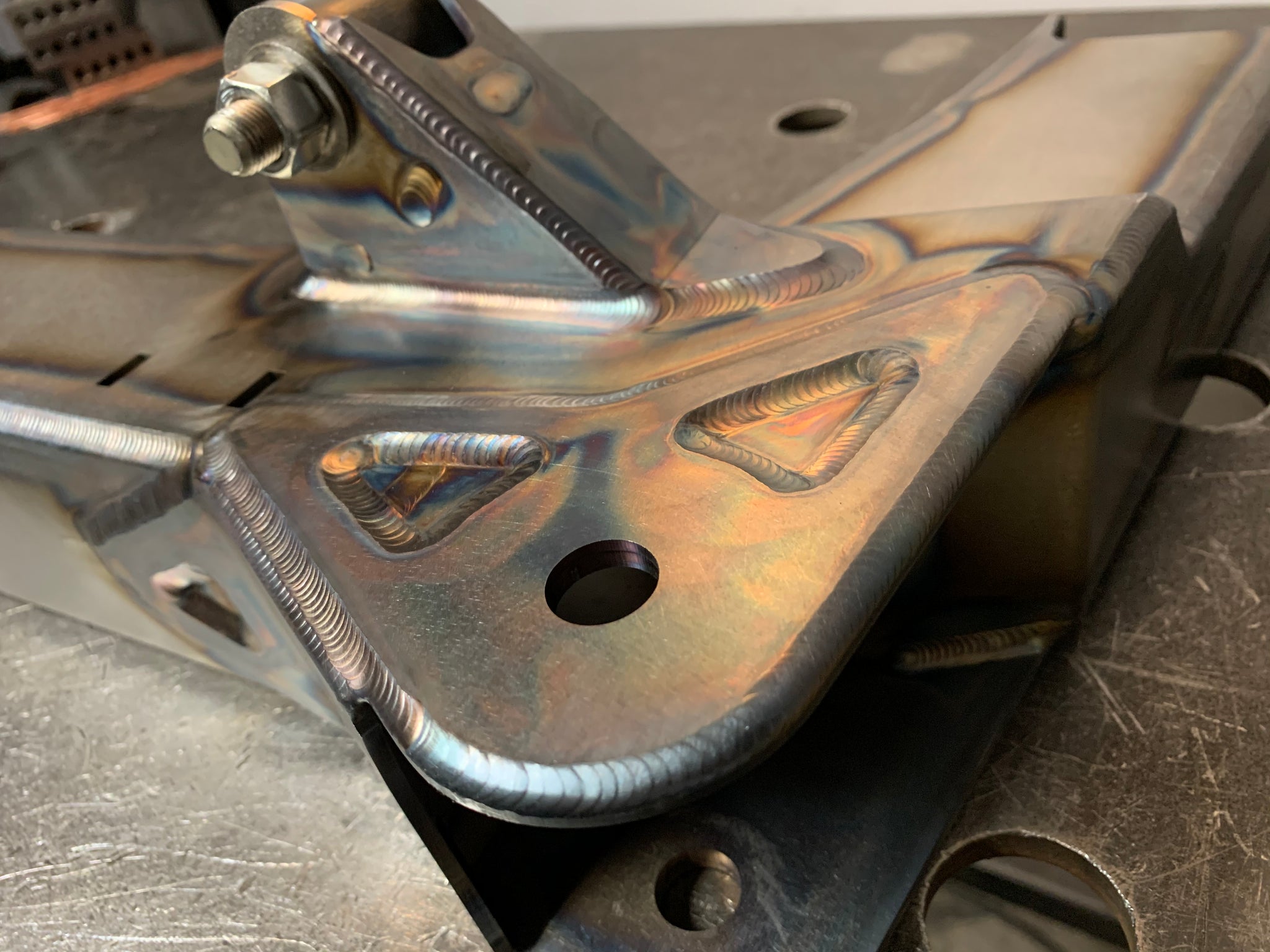

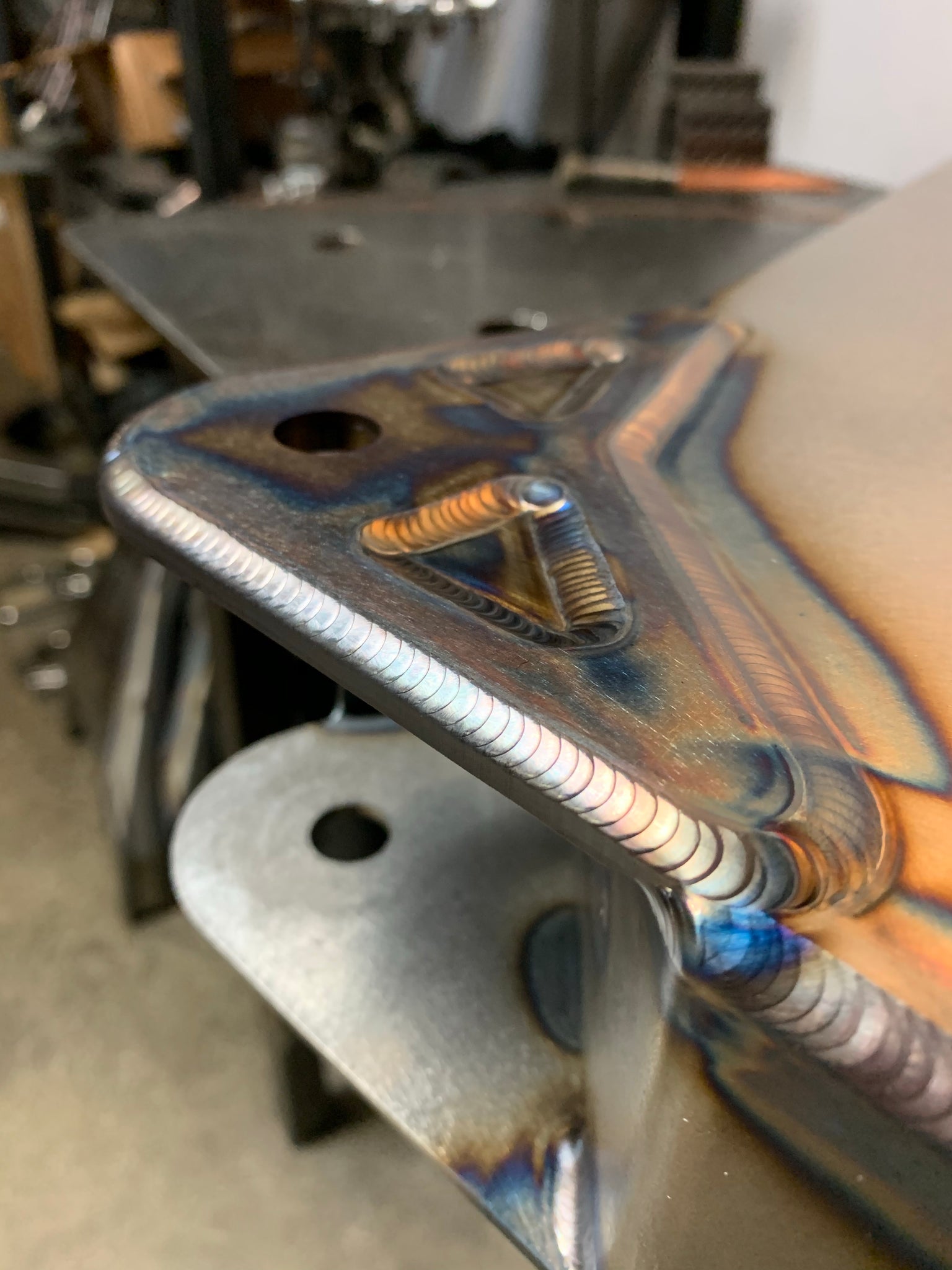

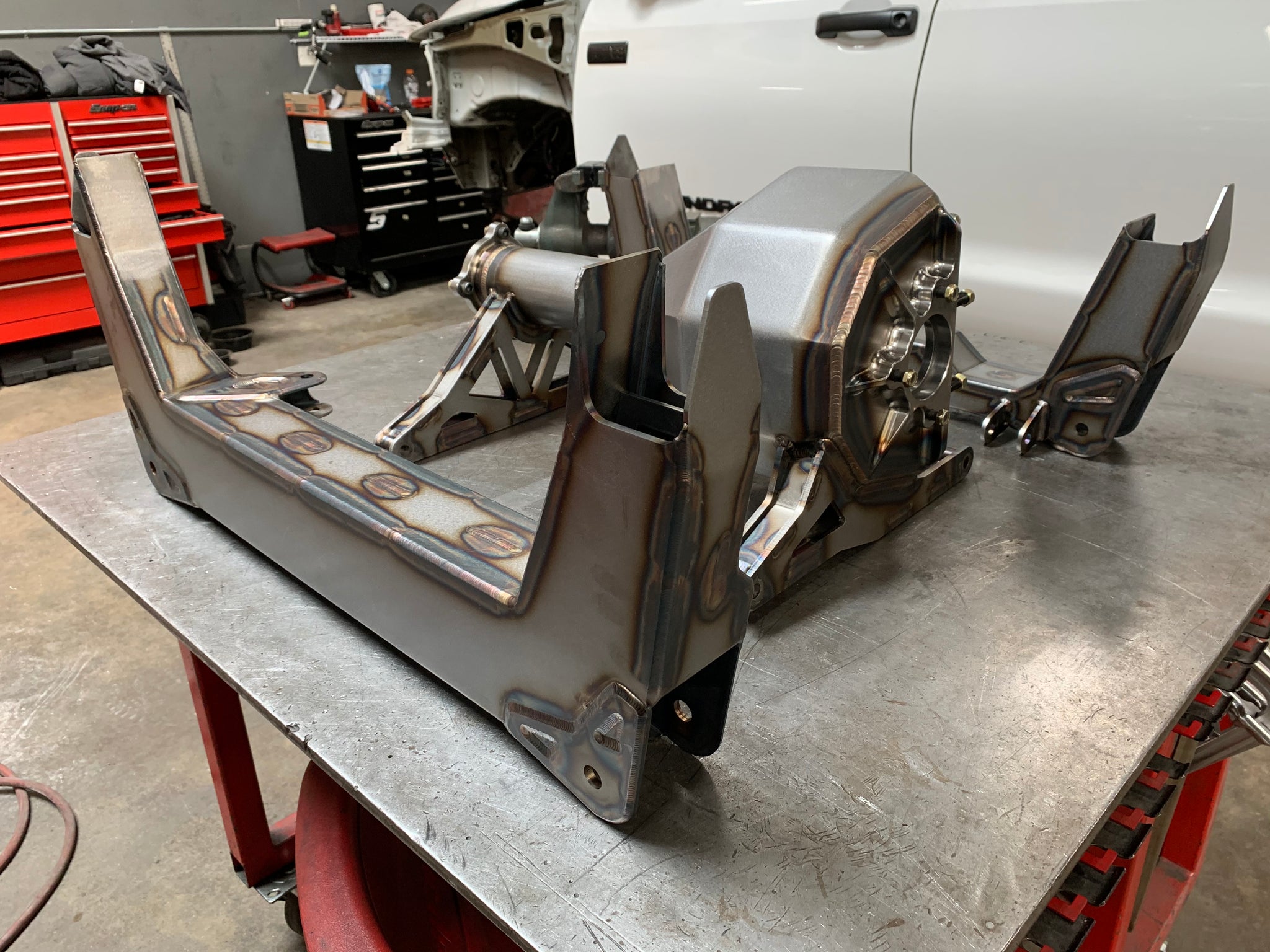

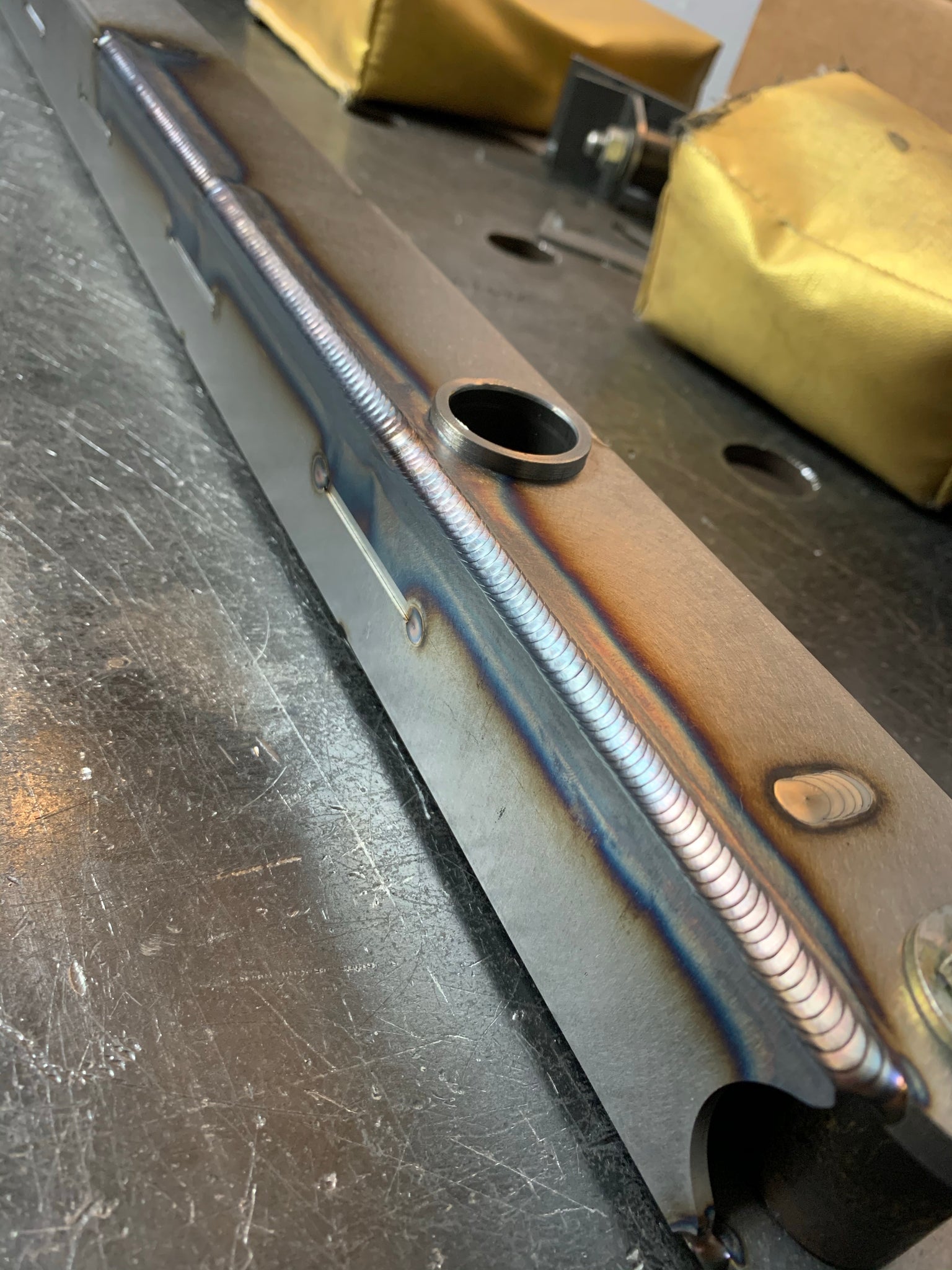

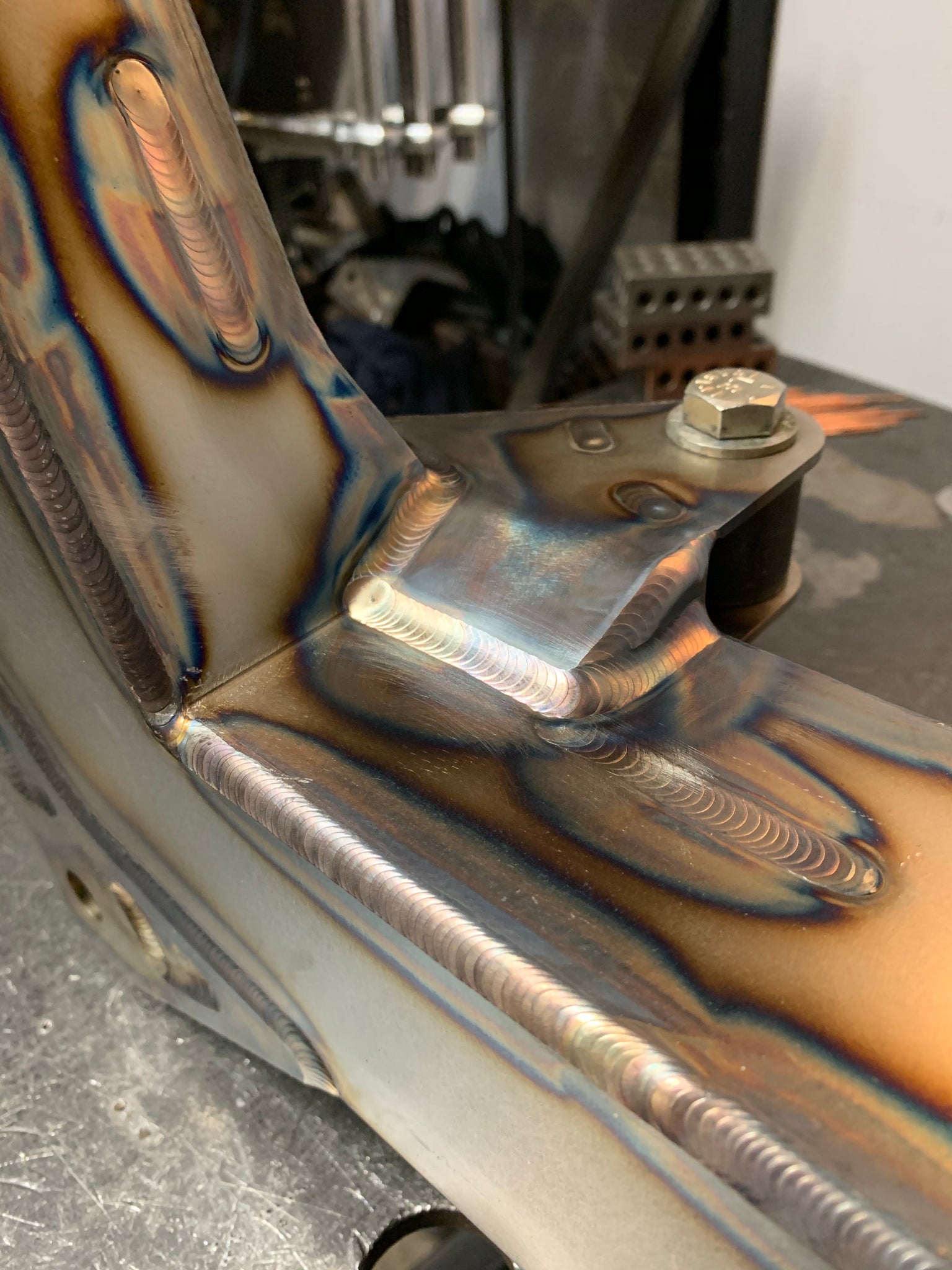

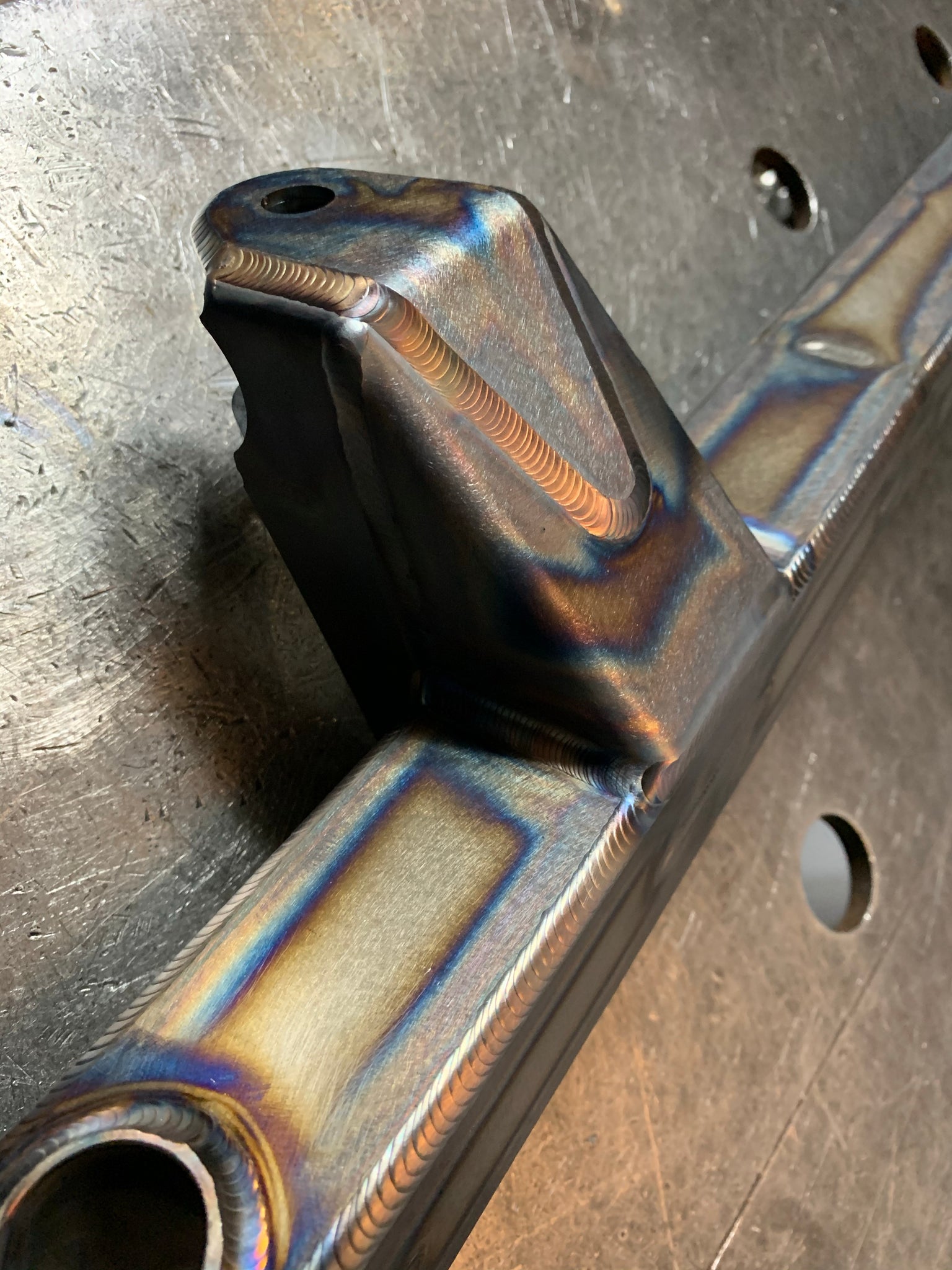

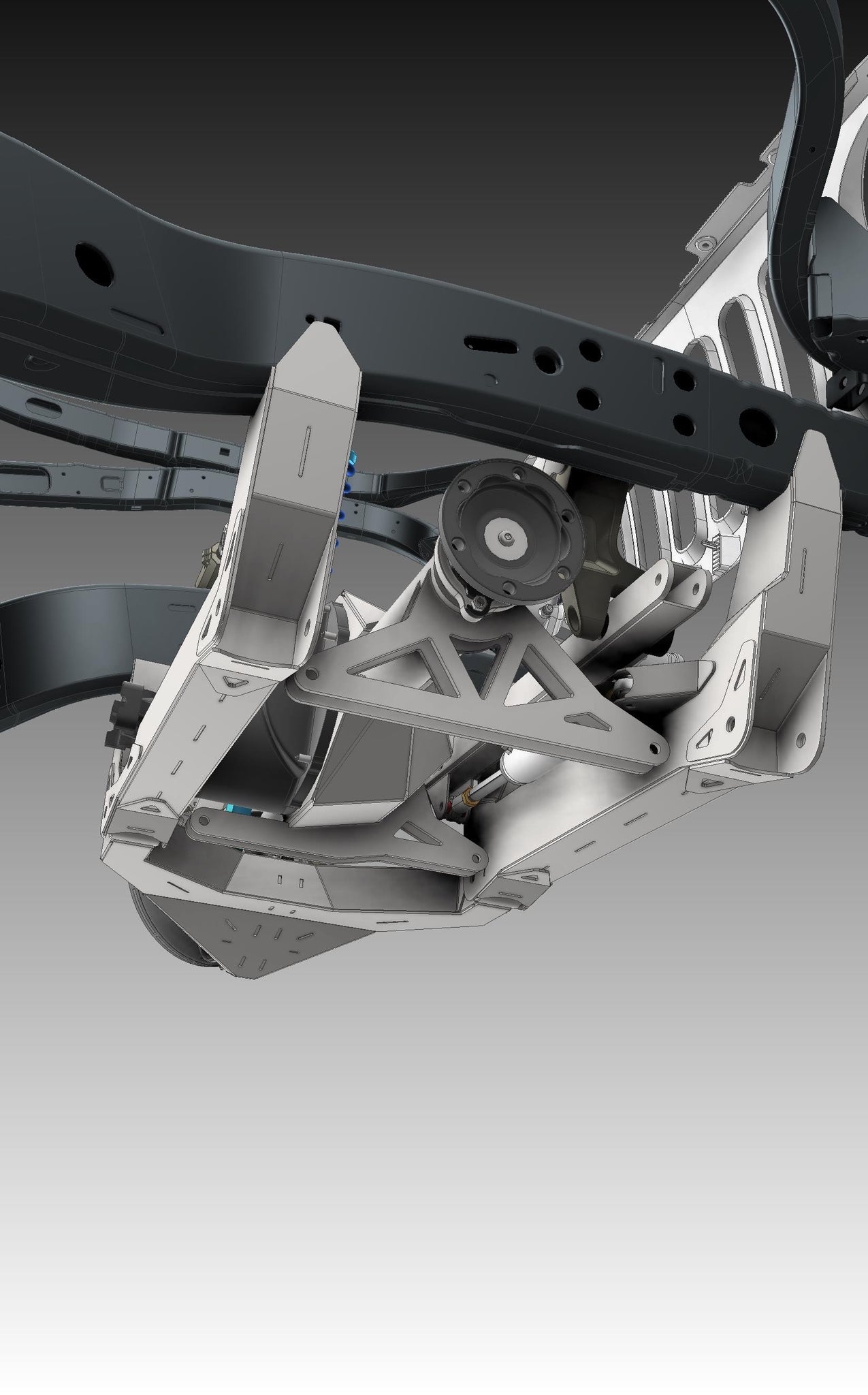

  • Fabricated 4130 tig welded a arm crossmembers that located onto stripped factory chassis
  • Fabricated 4130 tig welded steering center link for swingset steering
  • Fabricated 4130 tig welded pitman arm
  • Fabricated 4130 tig welded steering swinger pivot crossmember

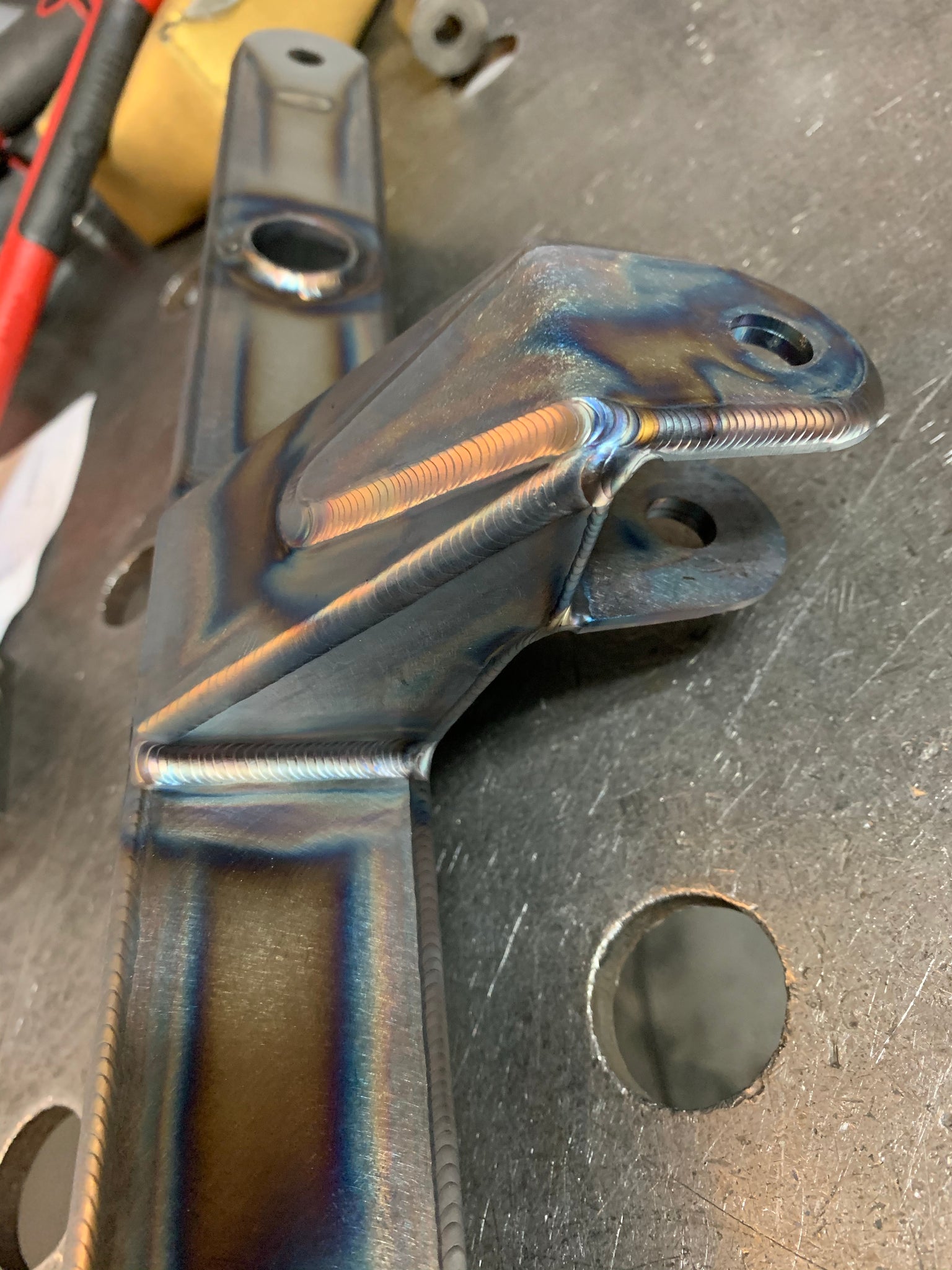

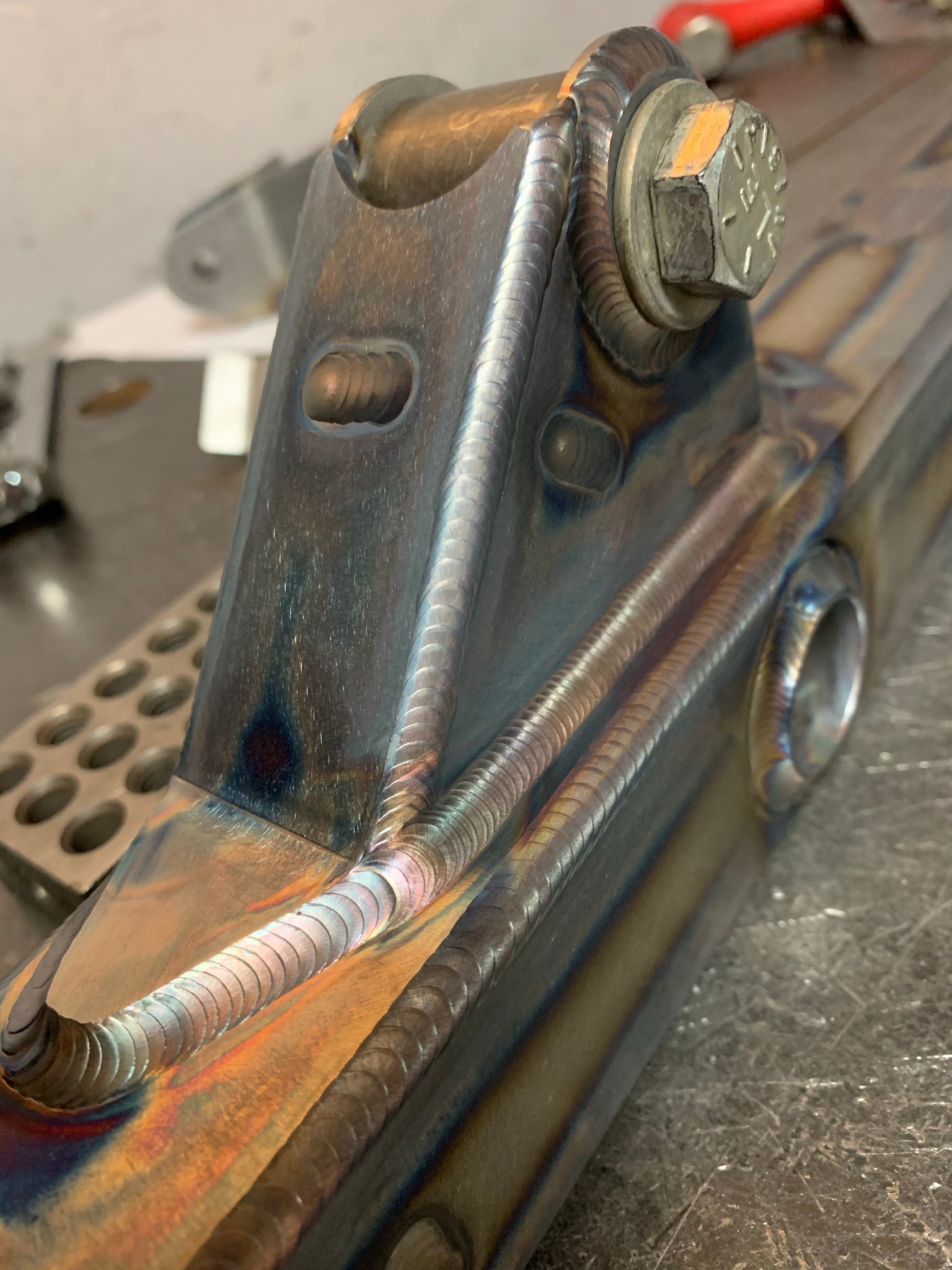

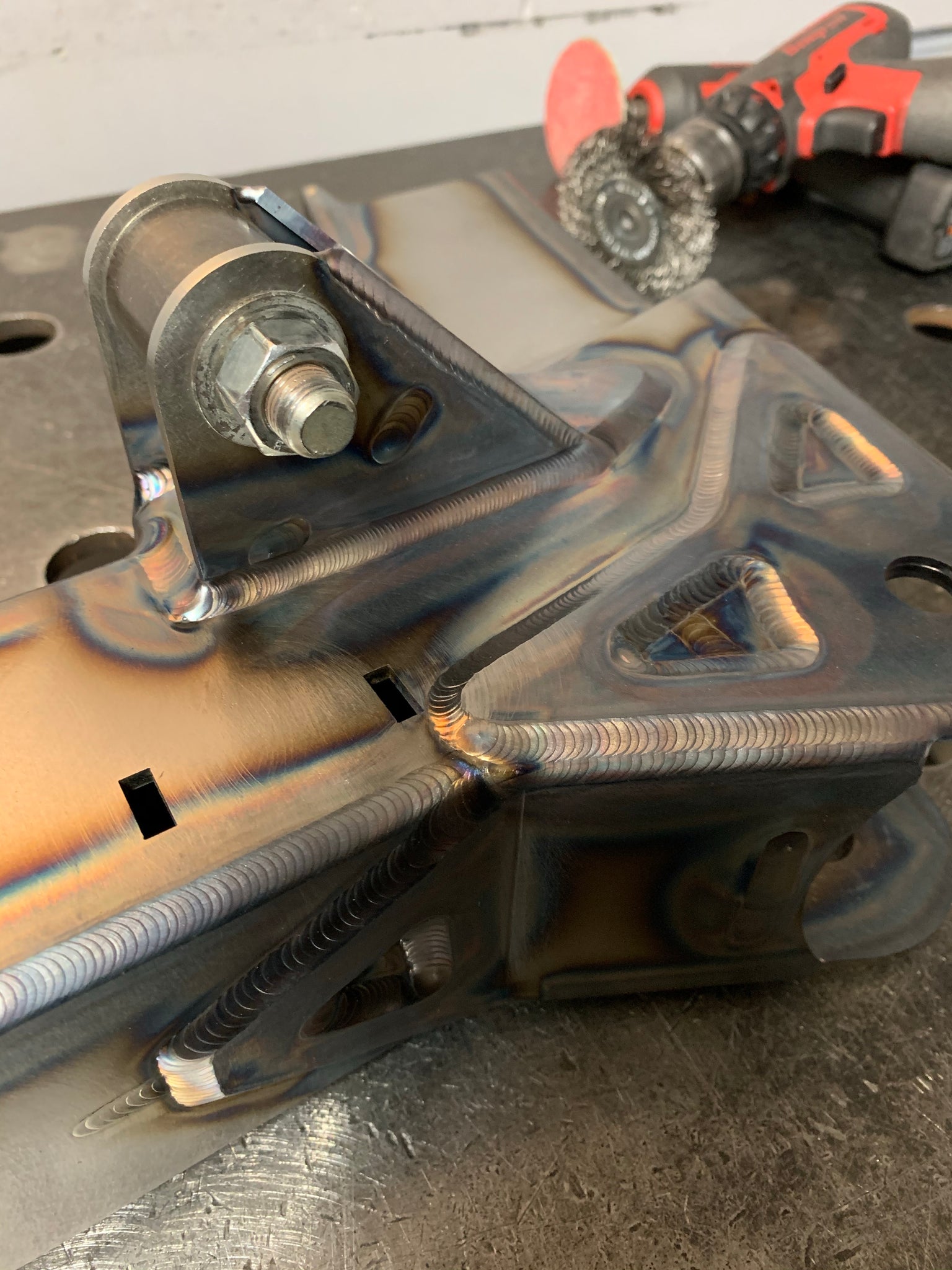

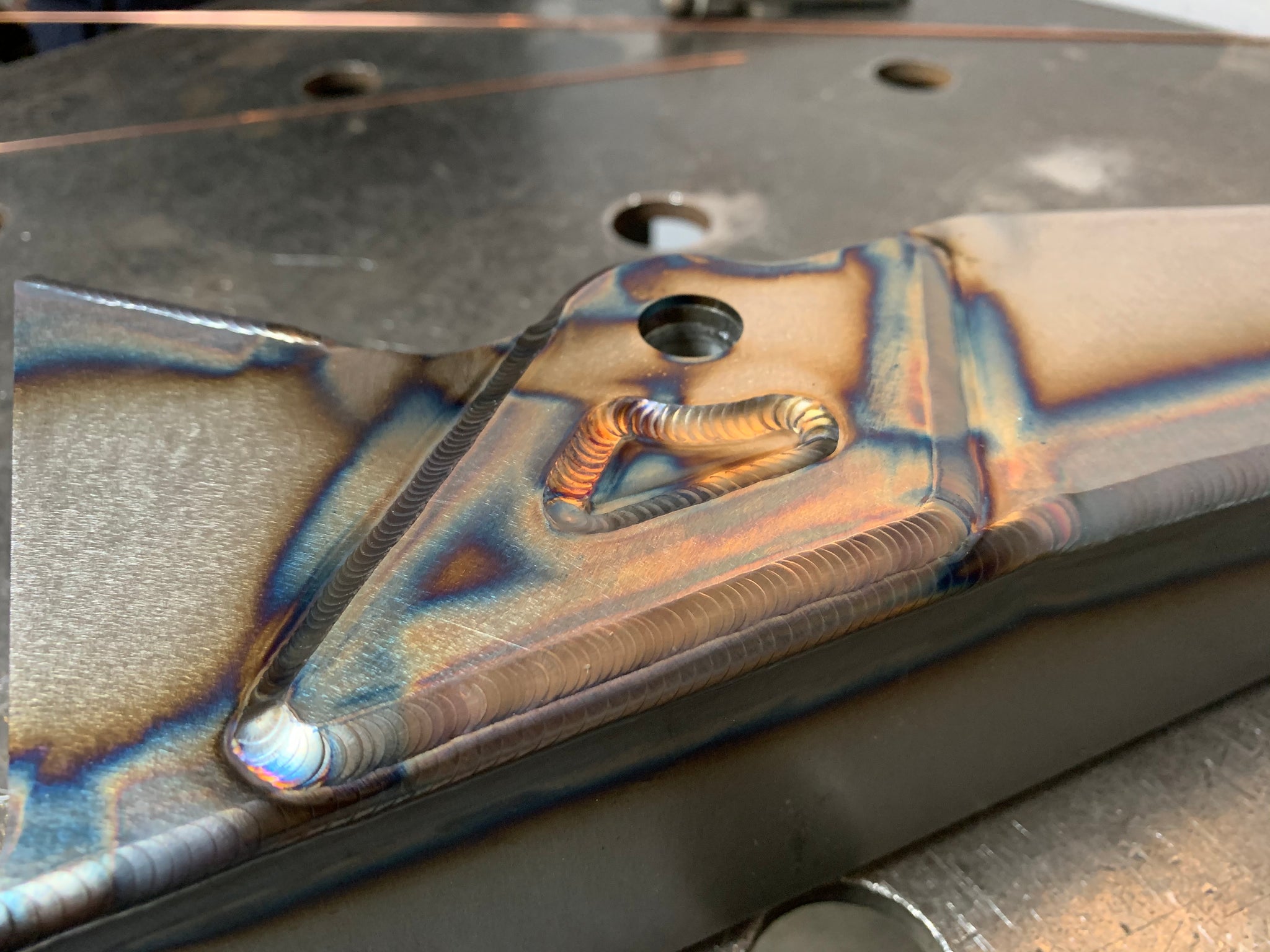

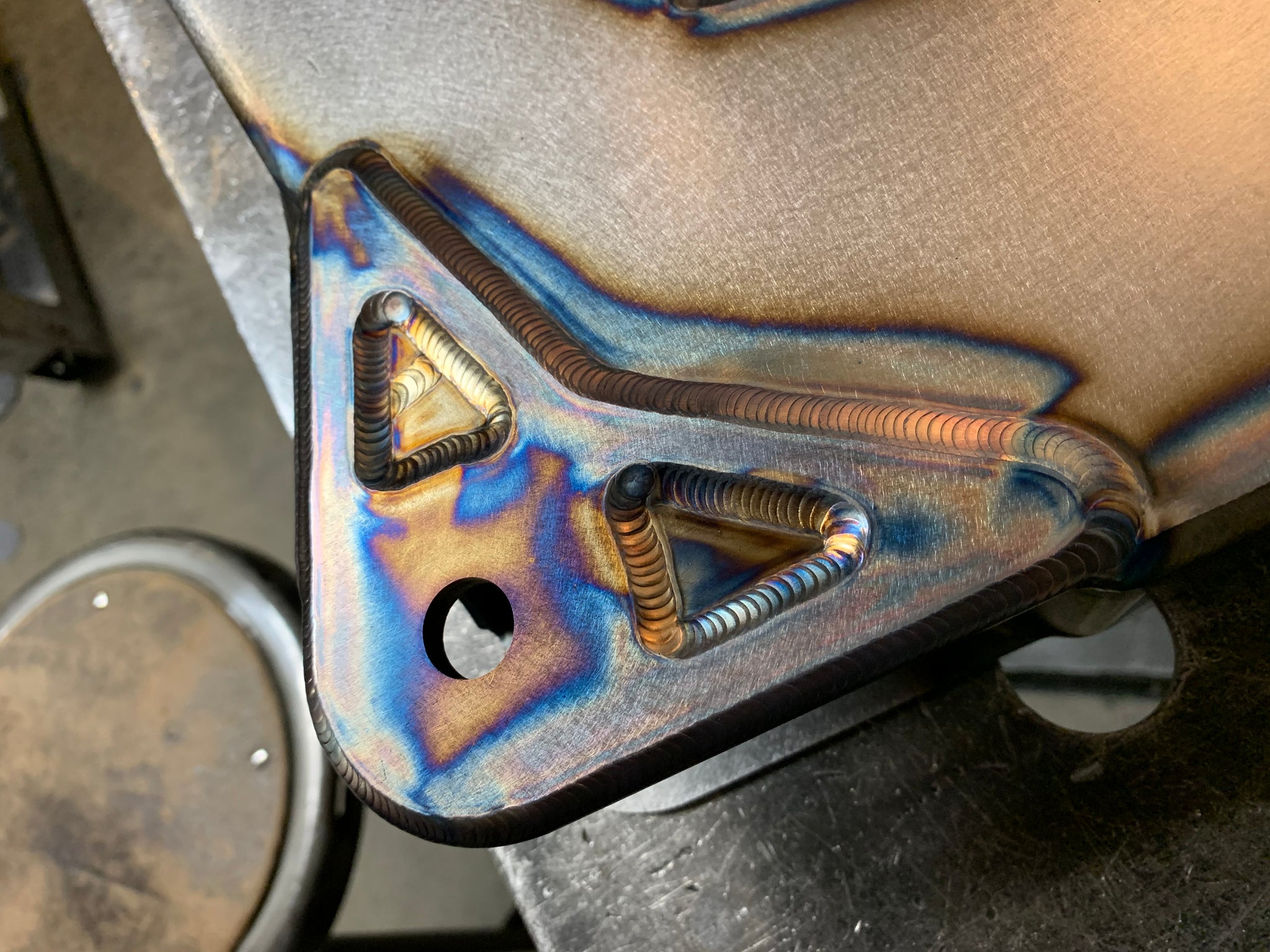

  • Fabricated 4130 tig welded upper a arm mounts that locate onto stripped factory chassis

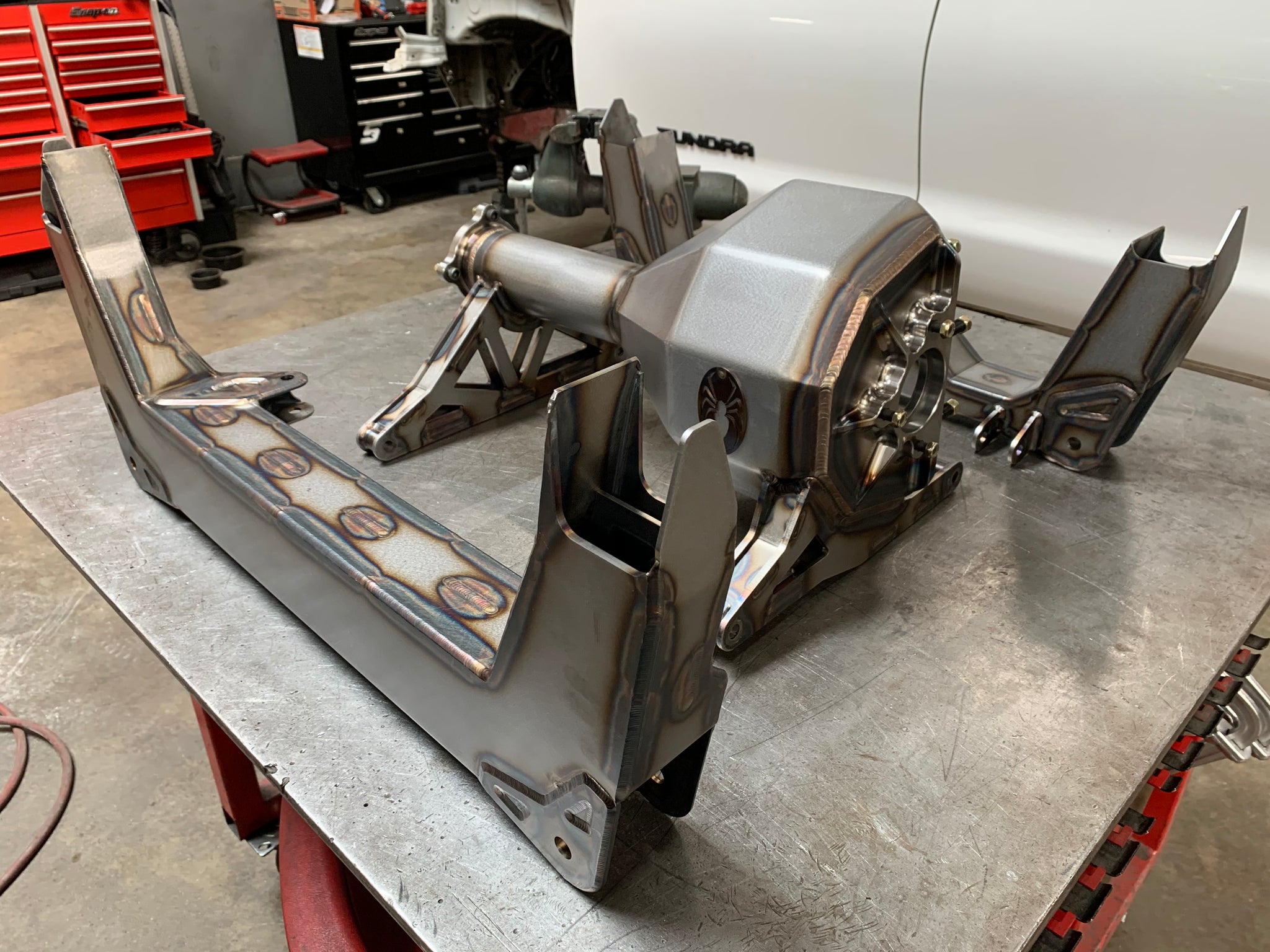

  • Fabricated 4130 tig welded front diff mounts that bolt into lower crossmembers and weld to Spidertrax narrow 9” ifs front diff.

Other hard parts that are included with this kit that add up to over $18,500.00 retail are;

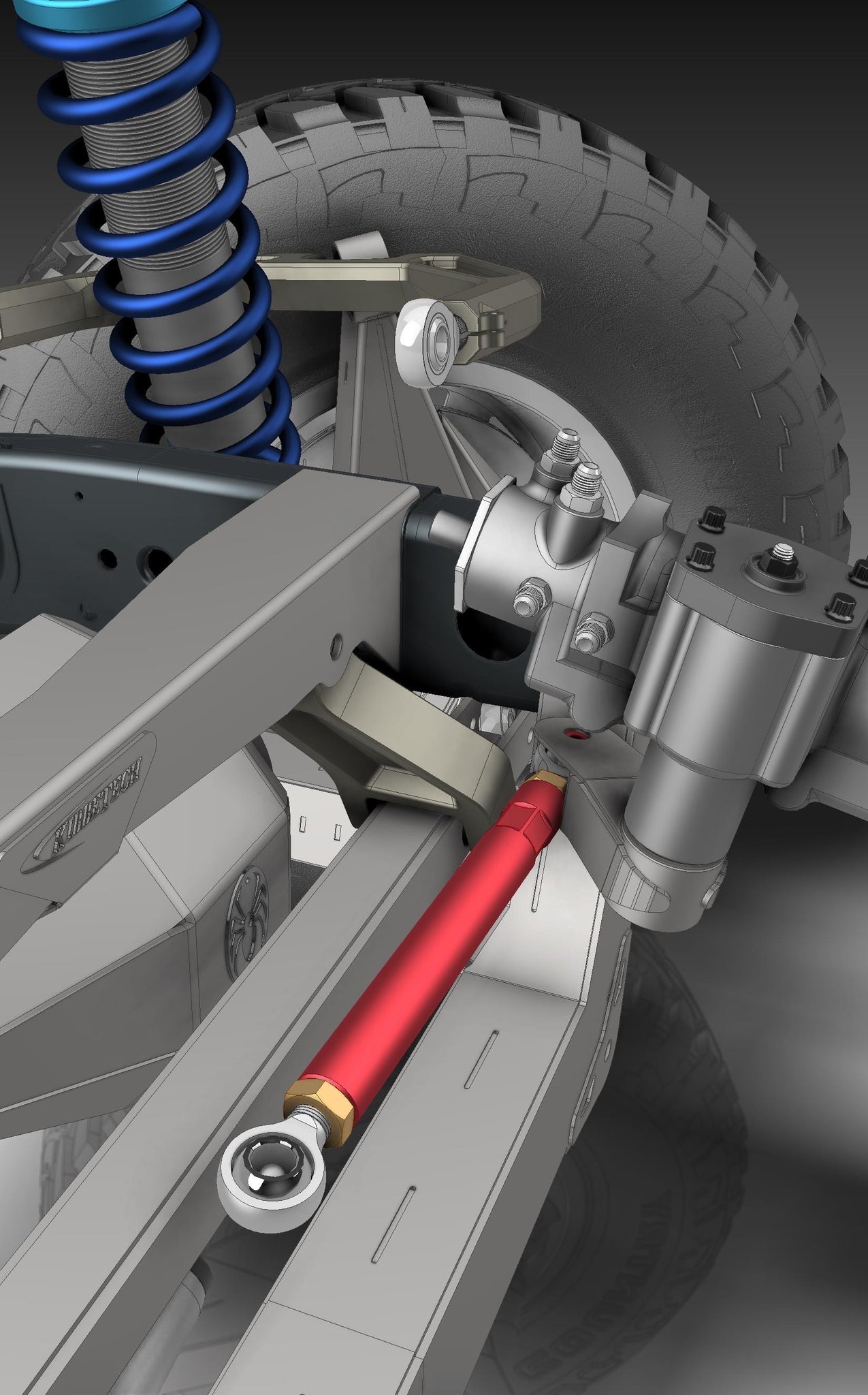

  • Power steering solution Saginaw style steering box with ram ports
  • Power steering solution 6.5” ram assist
  • Spidertrax unit bearing hubs
  • Spidertrax front half shaft axles
  • Spidertrax front diff axles
  • Spidertrax IFS front diff
  • All FK rod ends uniballs and heim joints
  • Wilwood front 6 piston calipers and 14” rotors with Spidertrax rotor adapters
  • 3rd member Not included

KIT IS BUILT TO ORDER

PLEASE ALLOW 2-3 MONTHS FOR BUILD TIME AS THIS IS AN EXTENSIVE KIT WITH MANY CUSTOM PARTS FROM MANY VENDORS

FREIGHT SHIPPING TO BE DETERMINED

NO REFUNDS
