Does NOT add any track width, uses stock axles and spindle

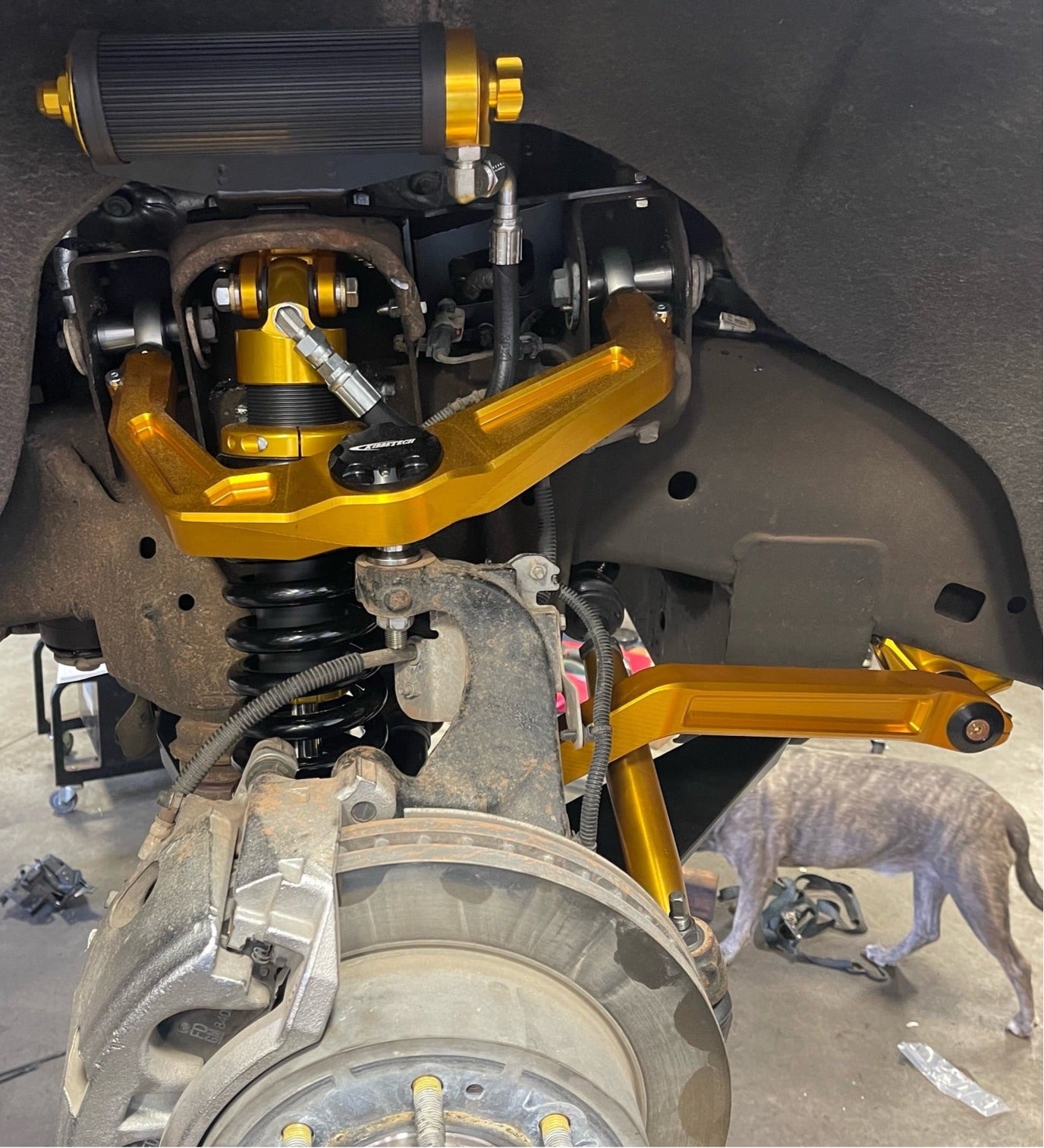

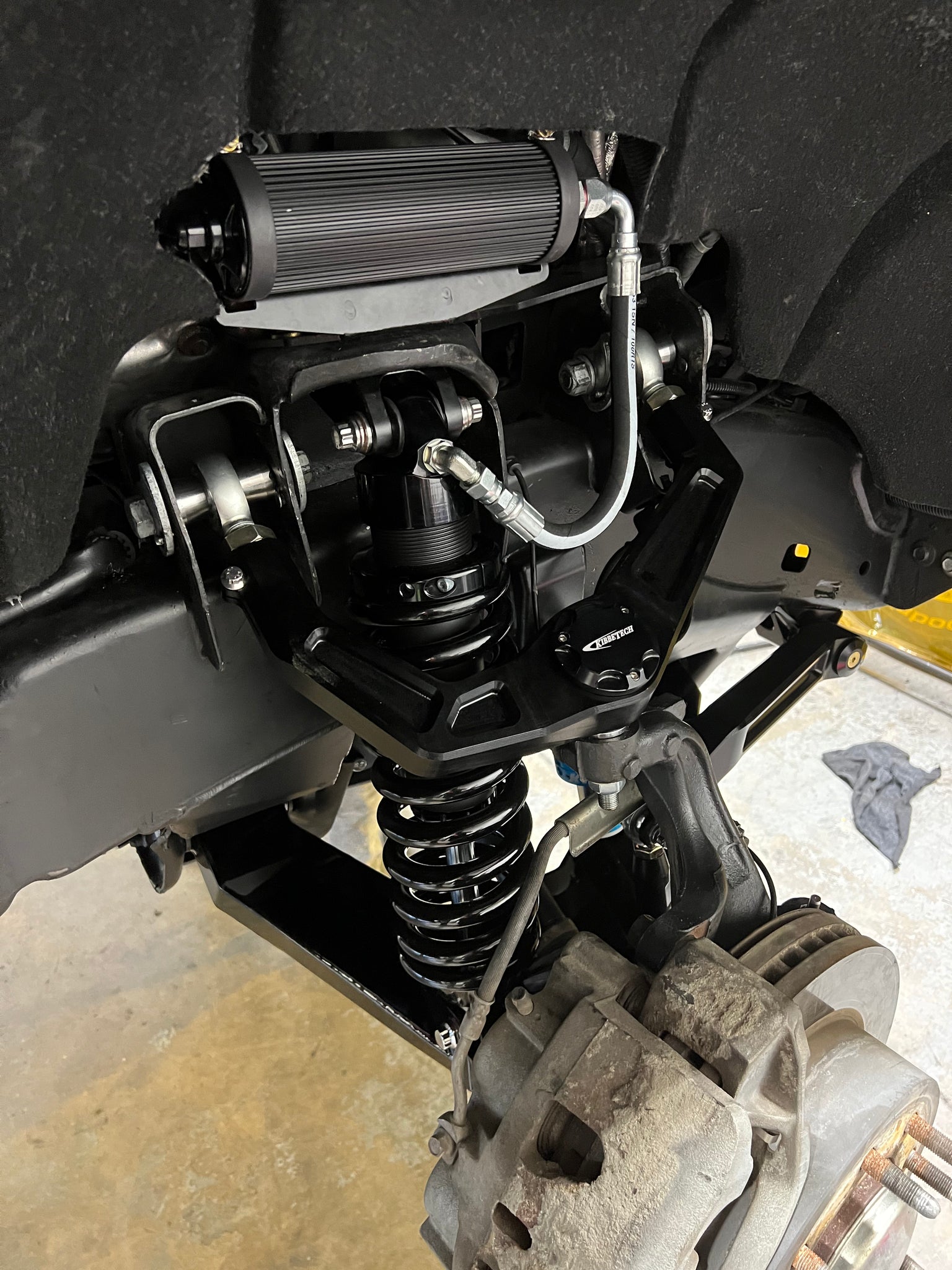

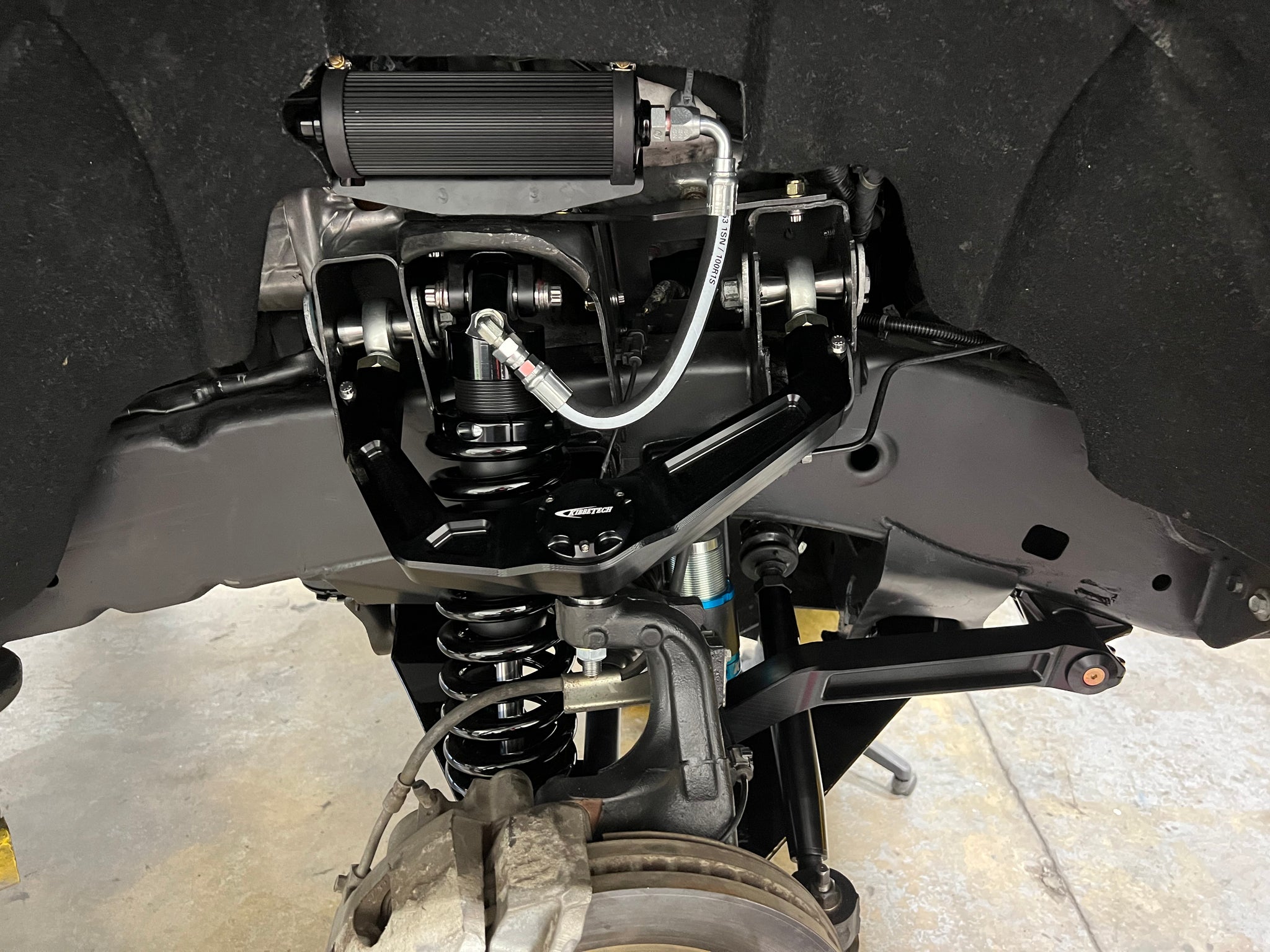

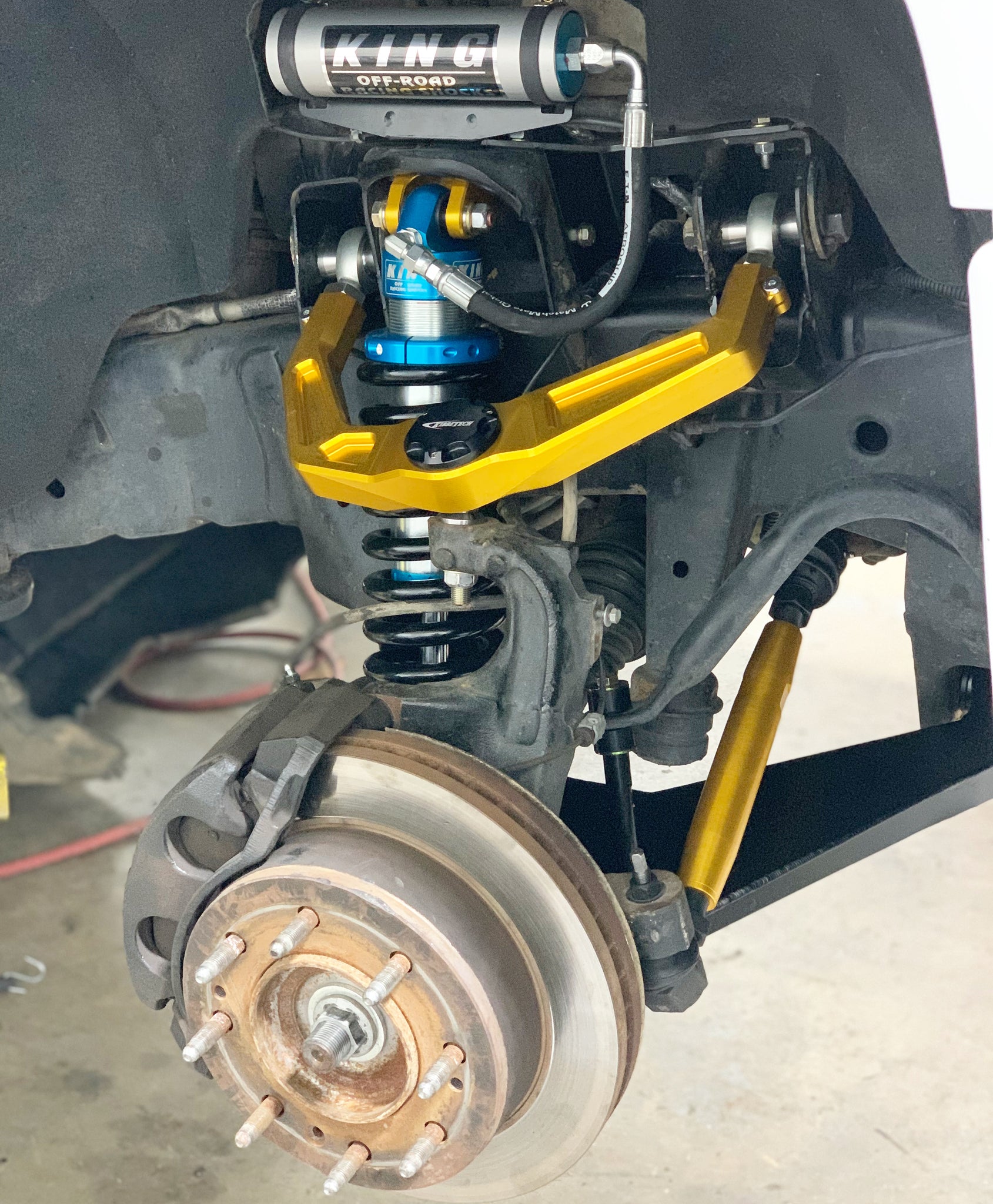

CNC Machined 6061-T6 Billet aluminum upper arm with FK 1.25'' uniballs at spindle pivot and FK 7/8'' heim joints at frame side pivots

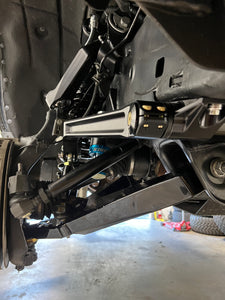

Fabricated 4130 tig welded lower arm utilizing lifetime Kryptonite Products ball joints with cnc machined secondary ball joint retainer at spindle pivot and Delrin bushings with 4130 inner sleeves at frame side pivots.
CNC Machined 6061-T6 Billet aluminum bolt in upper shock mount
Comes with kryptonite Sway bar end links to utilize factory sway bar

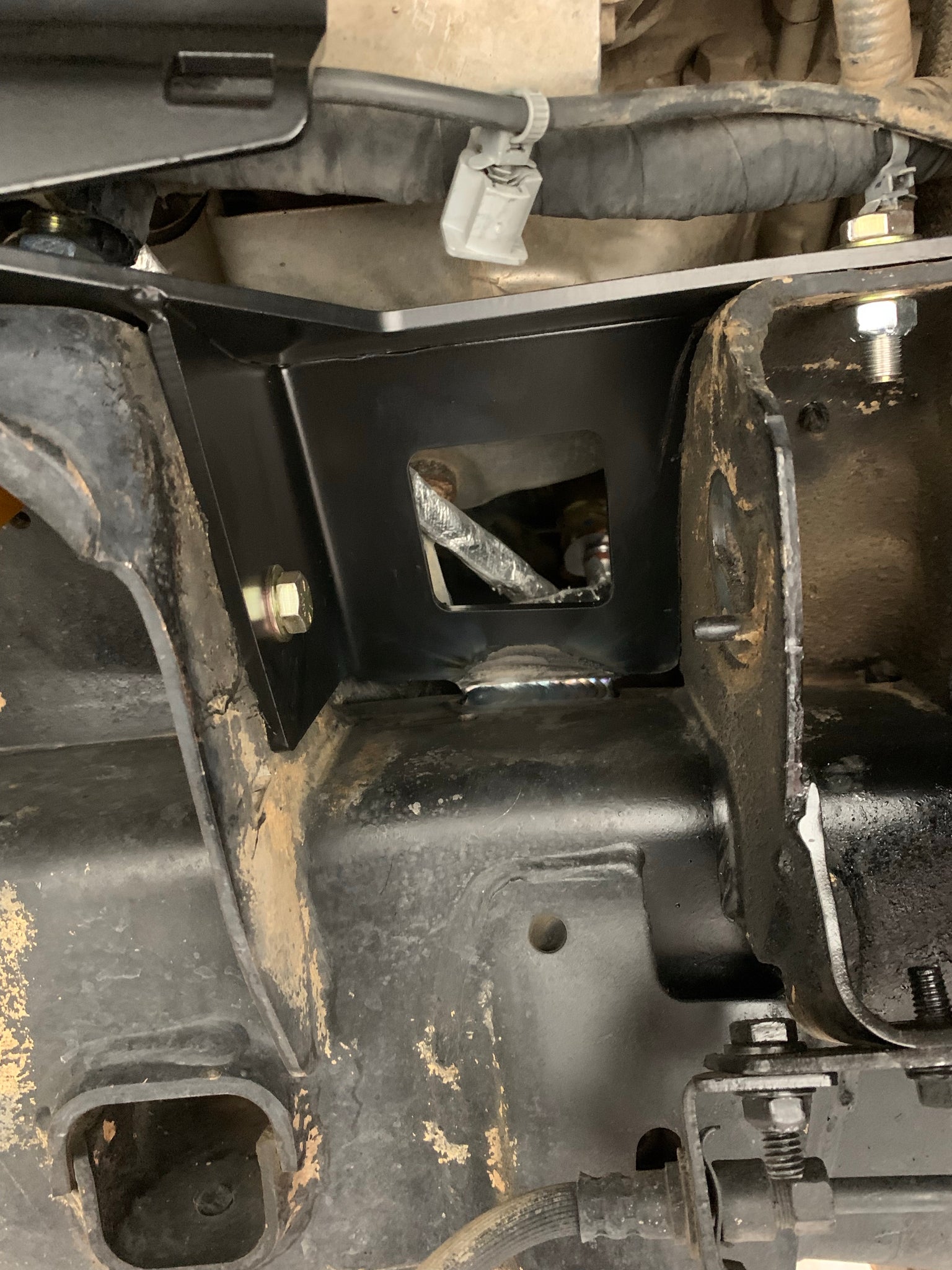

Fabricated upper a arm mount/shock mount gusset with integrated shock reservoir mount that includes heat shrink covered hose clamps

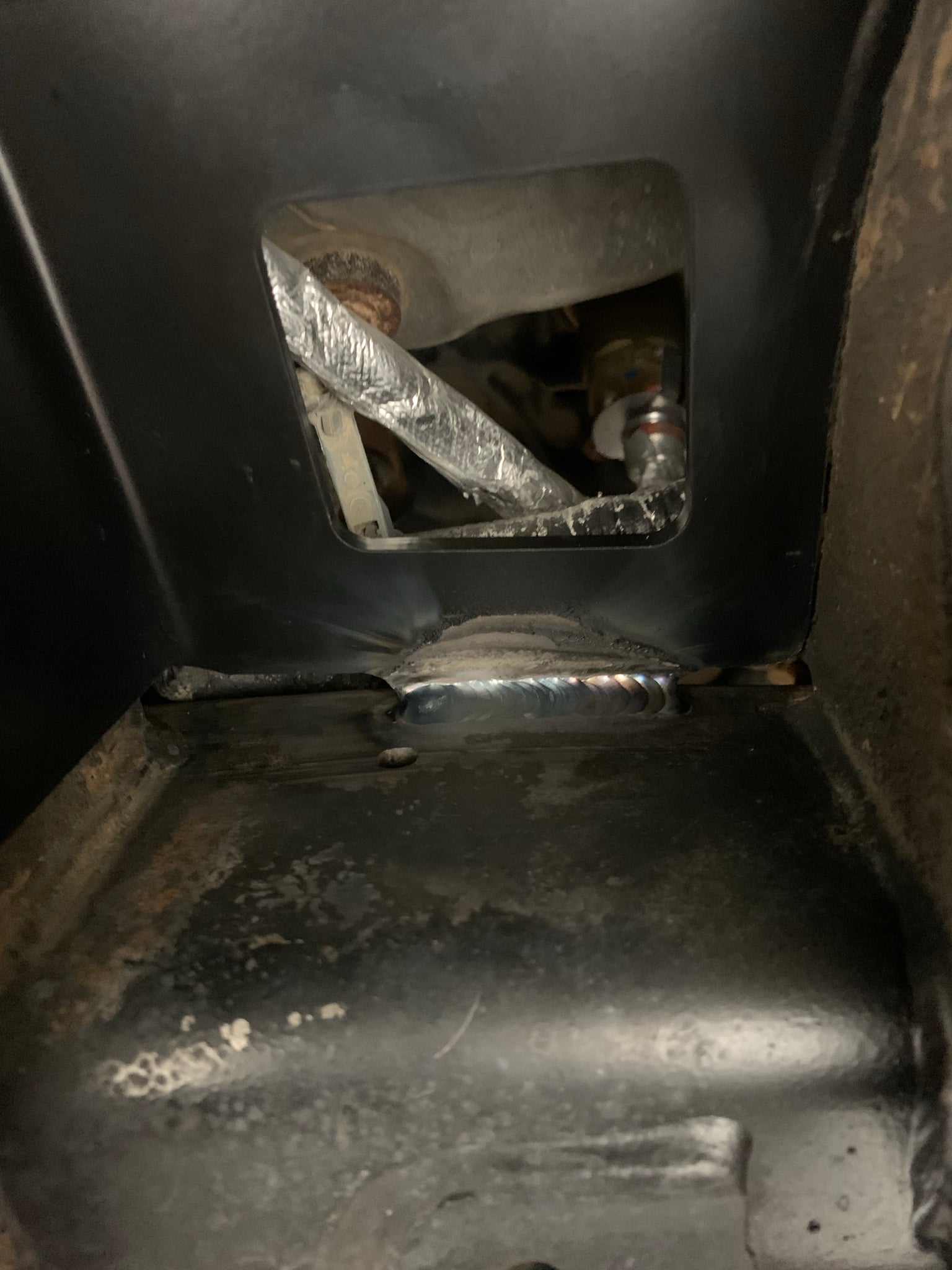

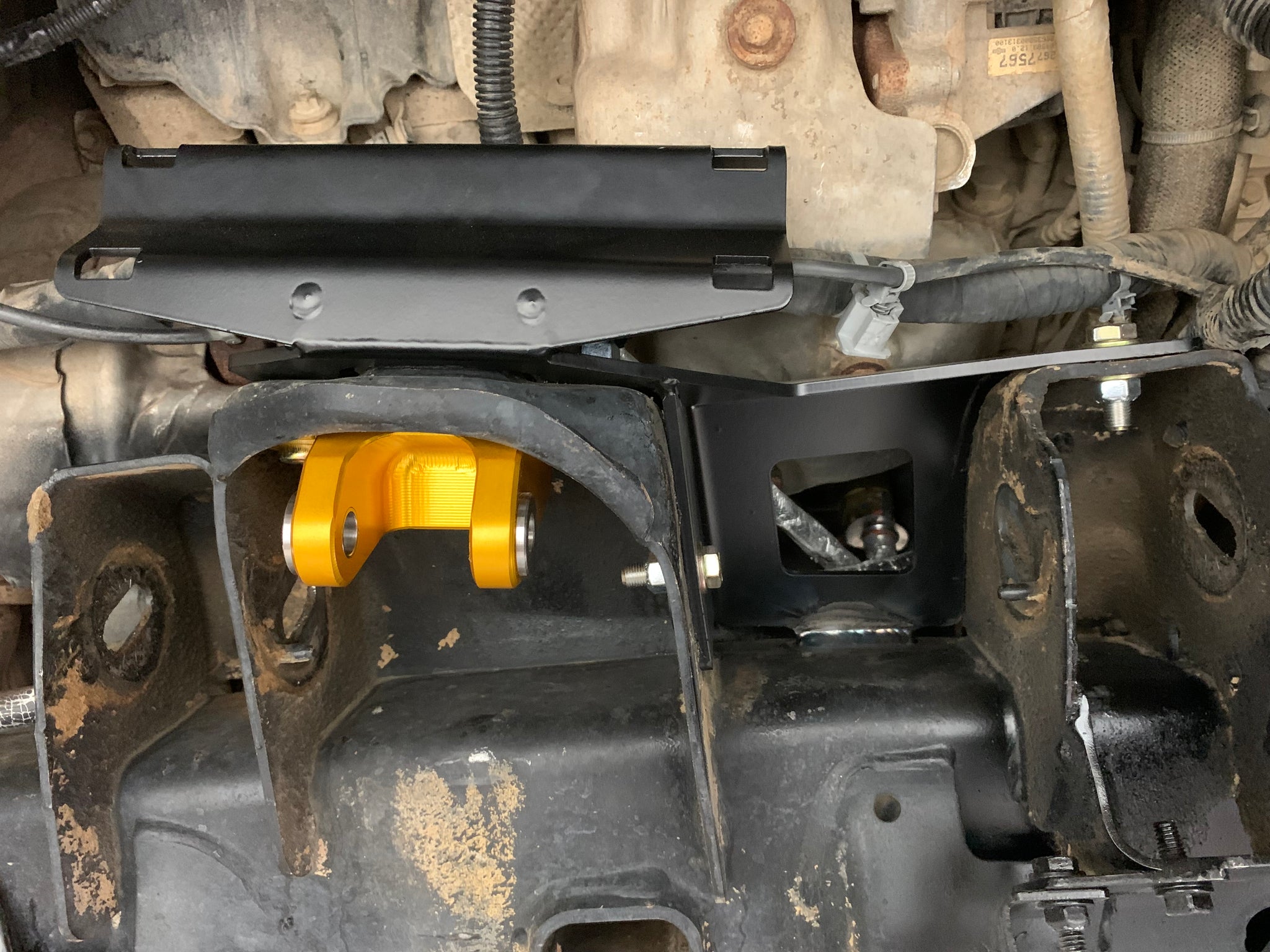

Bolt on design with optional recommended weld joint on upper a arm mount/shock mount gusset
0''-3” lift (leveling kit)
NO CV BIND at full droop
9.5'' wheel travel which is a massive improvement over stock
DELETES torsion bars to gain a smooth quality ride
4.5''Backspace wheel recommended
2011-2019 Will fit up to 35'' tires with some trimming
2020+ Will fit 37’s with some trimming.

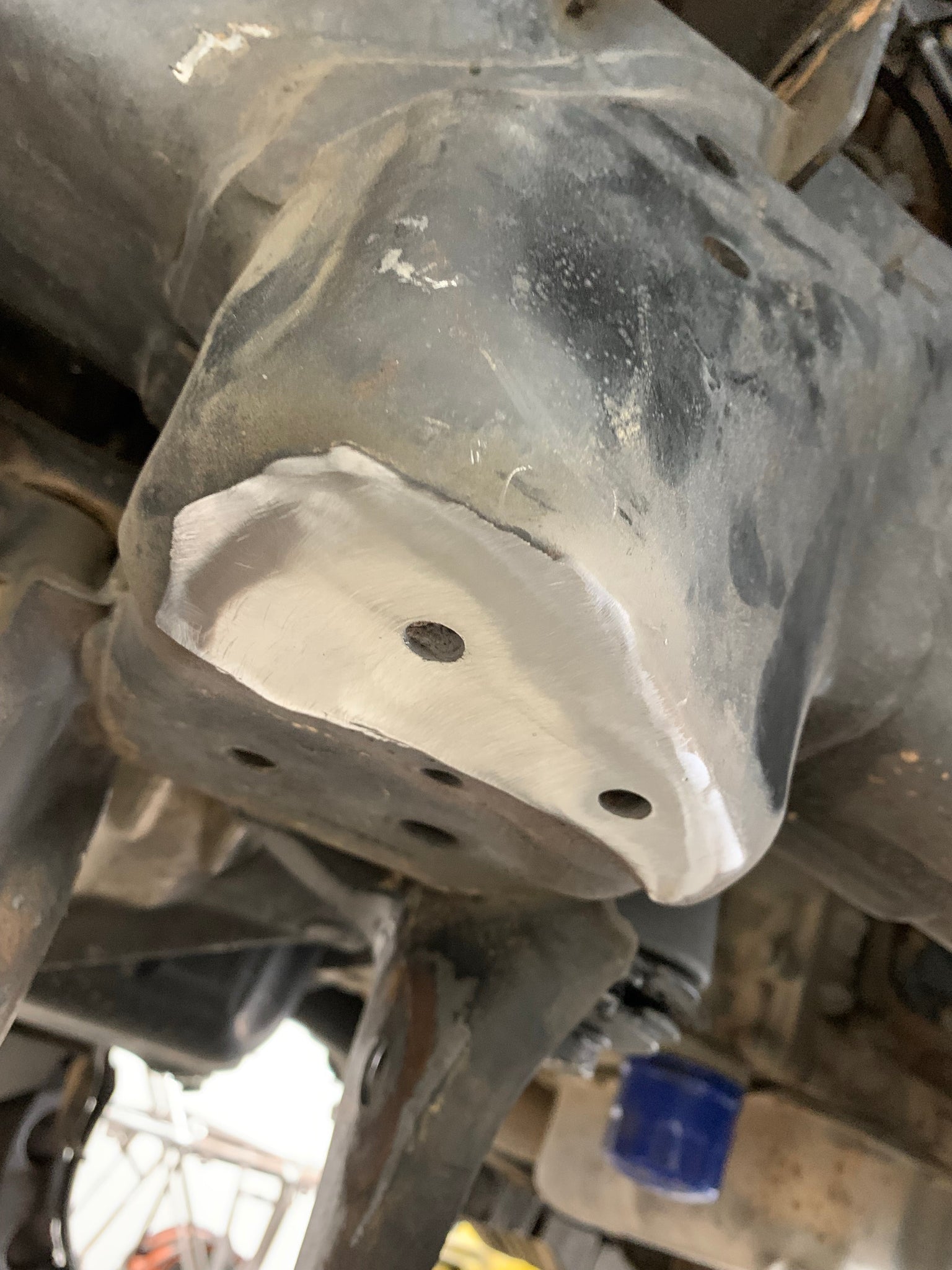

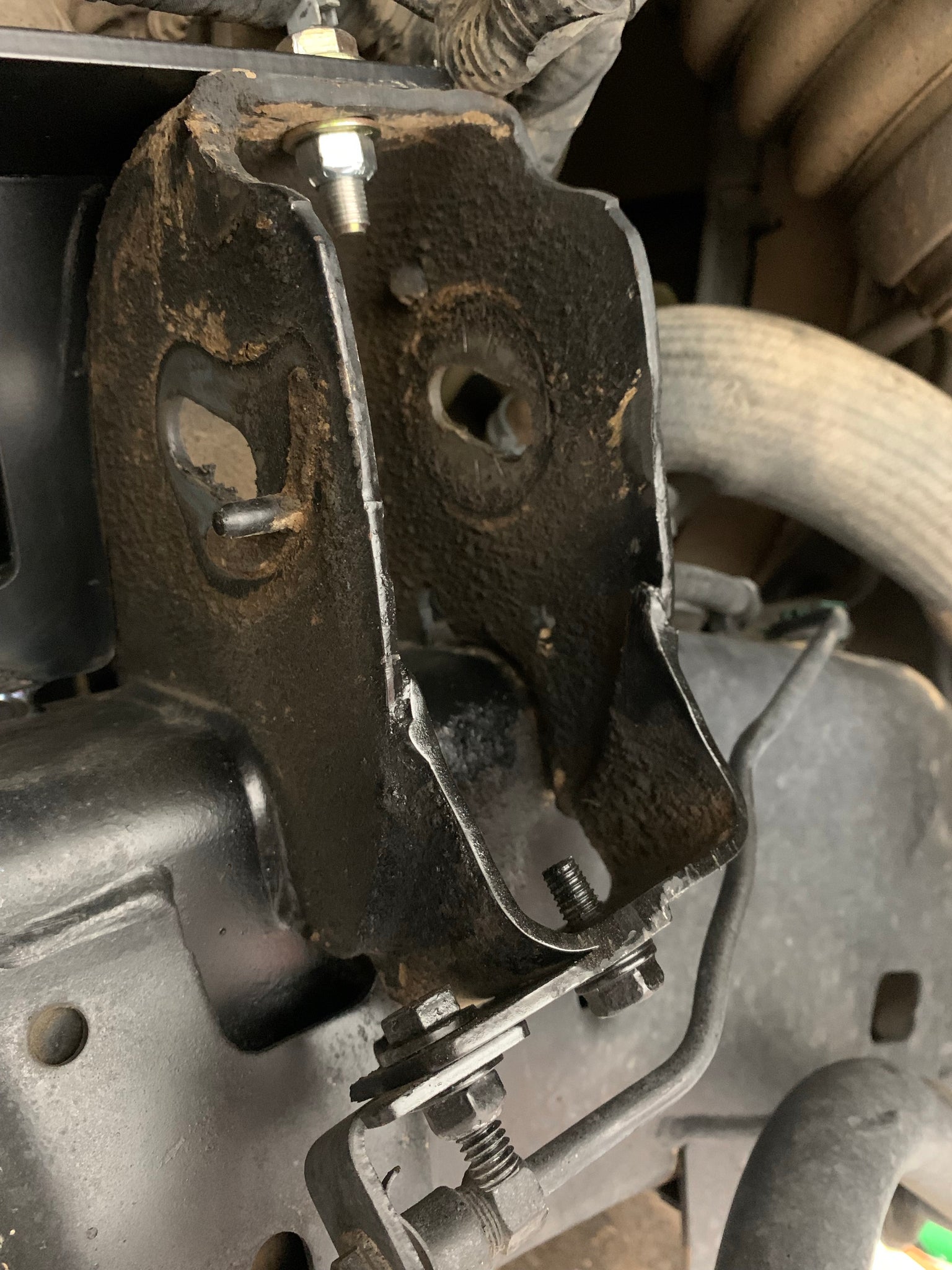

Minimal cutting required; upper a-arm droop stop needs to be cut out to allow upper a-arm to cycle and cut off rear bump stop cup to allow a clean up travel cycle.
2020 KIT requires different coil springs which is reflected in cost
2020+ KIT comes with same sway bar end links that come with the splined sway bar kit which is reflected in cost
Splined sway bar upgrade;$1849.99 https://www.kibbetech.com/collections/offroad/products/kibbetech-2011-gm2500-3500-splined-sway-bar-kit?variant=39439853387818
King bumpstop weld in option available now for $1349.99
Heavy duty tie rod kit utilizing Kryptonite Products ball joints available for $699.99 https://www.kibbetech.com/collections/offroad/products/kibbetech-2011-chevy-2500-3500-heavy-duty-tie-rod-kit
Custom powdercoat and anodize options available at extra cost (starting at $500)
Custom shock options available- Custom Black bodies, custom Anodize colors, custom resi colors or finned reservoirs and compression adjuster option. Compression adjuster +$350 Black cerakote shock bodies +$350 Anodize shock parts +$250 Anodize resi option +$125 Cosmetic black finned resi option +$175
Does not include install
Freight shipping not included
Please allow minimum 46 weeks for KING SHOCKS shocks to arrive as they are built per order to spec and are NOT a direct off the shelf item. Covid shutdowns and restrictions have added a massive lead time on our supply chains so we recommend pre ordering to get a head start on the ordering process, thank you for understanding!
***ALL PARTS AND KING SHOCKS ARE IN STOCK AND READY TO SHIP NOW***
***STANDARD KING BLUE AND BLACK AND GOLD SHOCKS IN STOCK'''
