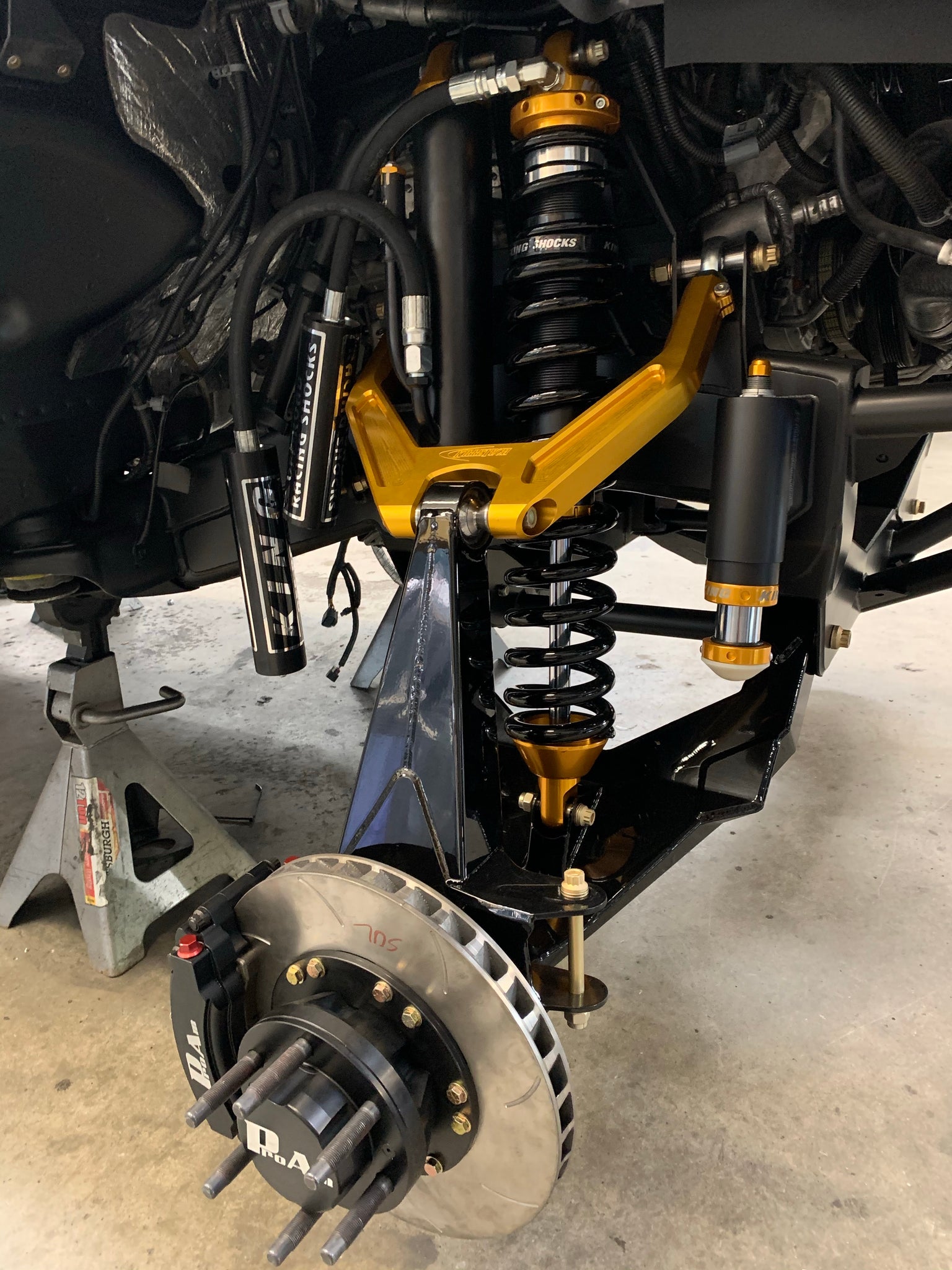

Kit includes:
- Billet upper control arms
- Billet tie rods
- 4130 tig welded lower control arms
- 4130 tig welded spindles
- 4130 tig welded upper a arm mounts with integrated shock mounts and bolt in crossbar
- Spindles only come with a 12 bolt on 4'' spread for race snouts
- NO oem hub/brake option available
- Spindles are tabbed out for ProAm 6 piston calipers
- All uniballs, rod ends, jam nuts, misalignment spacers, etc
- Kit now includes all proper shank length RPI 12pt hardware
- Kit now includes Kibbetech limit straps x4
Cost - $9500
Kit requires the use of ProAm 2.5" Race Hubs and Big Brake Kit which include:
- 2.5" ProAm Race Hubs
- 14" ProAm Rotors
- 6 piston ProAm calipers
- All hardware necessary for assembly
Cost - $5455
Shock mount specs;
This shock mount is a basic set up for the do it yourself-er
With this shock mount you can achieve 18'' of wheel travel and fit a 2.5''x10'' stroke dual rate coil over and up to 3.5''x10'' stroke 5 tube bypass
To achieve up to 21'' travel this requires 12'' stroke shocks and a full custom engine cage and the relocating of almost everything in the wheel well area. This option will also fir 3.0'' coil overs and 4.0'' bypass with the Billet J-Arm upgrade
Recommendations;
We highly recommend the following with this kit;
https://www.kibbetech.com/collections/2007-gm1500-products-1/products/kibbetech-2007-2018-silverado-1500-2wd-swingset-steering
Email us at info@kibbetech.com for questions
