Kibbetech 01-10 Chevrolet 2500HD 4WD Long Travel Kit
Kibbetech 01-10 Silverado/Sierra 2500/3500HD 4WD Long Travel Kit
The front 4x4 LT kit includes;

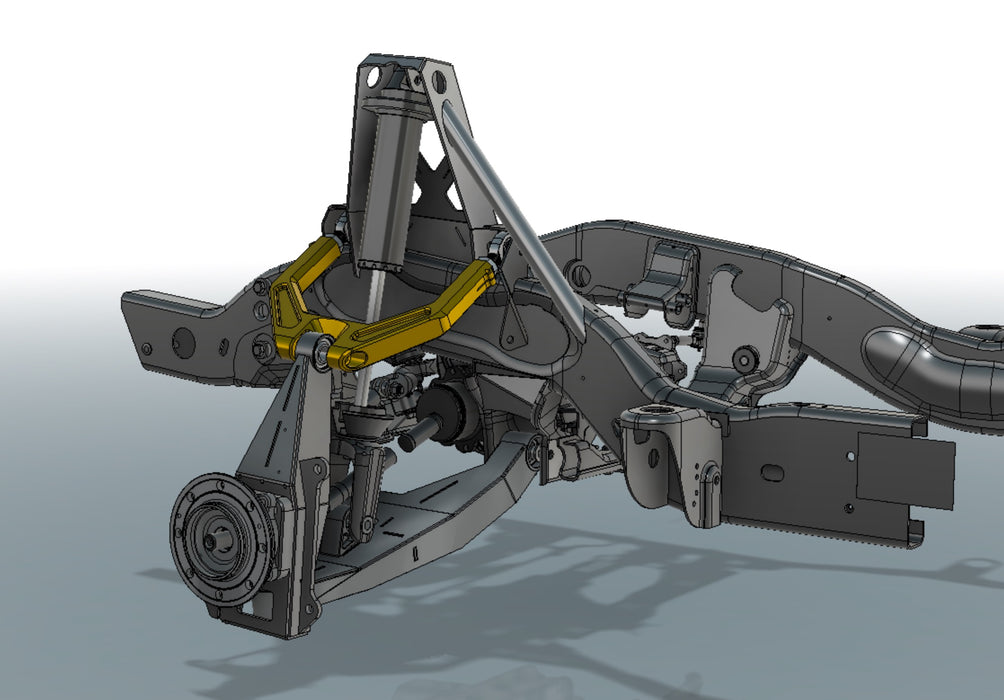

First 2 cad pictures represent the new style kit! All new design will feature taller spindle with upper a-arm mount ON TOP of the chassis and better geometry like the 11-19 2500 kit.
New style Billet upper control arms New style Billet tie rods Fabricated 4130 lower control arms (updated design) Fabricated 4130 spindles (updated design) Fabricated 4130 weld in shock mount with integrated a arm mounts All rod ends, uniballs, steering clevises and stainless misalignment spacers
Now comes with all RPI 12pt aircraft hardware +$1750 VALUE Limit straps included Will work on 2wd and some 1500HD models Retains factory hubs and brakes The kit requires and includes custom 300m axles built to spec
12'' travel with 8'' stroke shock
Up to 16'' travel with 10'' stroke shock-This requires moving of EVERYTHING in wheel well area for shock mount room and tire clearance
Moves hub center 2'' forward
Increases track width to about 92''
Up to 40'' with a lot of work
Clears 37'' tire with minimal work
Requires fiberglass fenders
When choosing with shocks you will be ordering a set of KING 3.0''x8'' coilovers with compression adjusters GOLD anodize, Black cerakote body, Clevis shock end with axle pass through, remote Gold resi. Extra options are available at extra cost.
THE VENDOR PARTS FOR THIS KIT ARE ALL BUILT TO ORDER!
SHOCKS ARE 6+ MONTHS OUT SO WE RECOMMEND ORDERING NOW!
