CHEVROLET/GMC COLORADO/CANYON/ZR2 4WD LONG TRAVEL KIT 2015-2022

Original price $10,500.00 - Original price $18,375.00
Original price
$10,500.00
$10,500.00 - $18,375.00
Current price $10,500.00
ALL NEW DESIGN!
  • CNC Machined Billet upper arms
  • CNC Machined Billet tie rods
  • Fabricated 4130 tig welded lower a arms
  • Fabricated 4130 tig welded and machined uprights
  • Fabricated 4130 tig welded upper arm mounts
  • Includes all uniballs, heim joints and spacers
  • Includes custom front axles
  • Now includes all 12 point aircraft hardware
  • Now includes x4 Kibbetech limit straps
  • Now includes 4130 Tig welded weld on shock mount for 8'' coilover and bypass (2.5'' coilover and up to 3.5'' bypass fit with ease)
  • Minimum 4.5” backspace wheels
  • 35” or bigger tires with modifications
  • Requires fiberglass fenders
  • Select "KIT ONLY" for no shocks
  • Select "WITH SHOCKS" for standard Blue king shocks 2.5'' coilover and 3.0'' bypass and 2.0'' bumpstop
  • Select "WITH CUSTOM SHOCKS" for 2.5'' coilover and 3.0'' bypass and 2.0'' bumpstop in custom black and gold colors, compression adjusters on coilover resis, all 4 finned reservoirs, black coil springs, black resi hoses

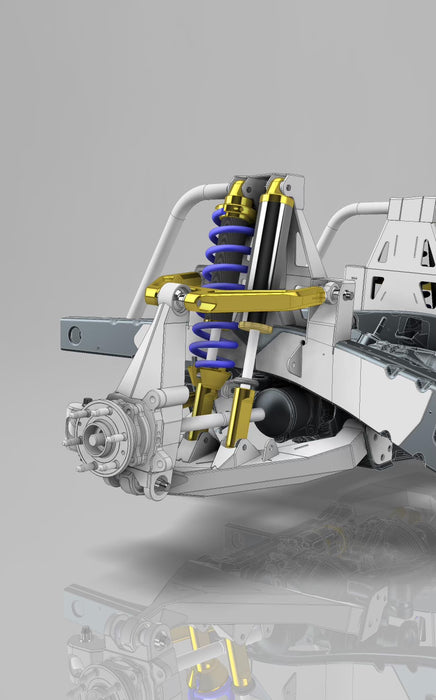

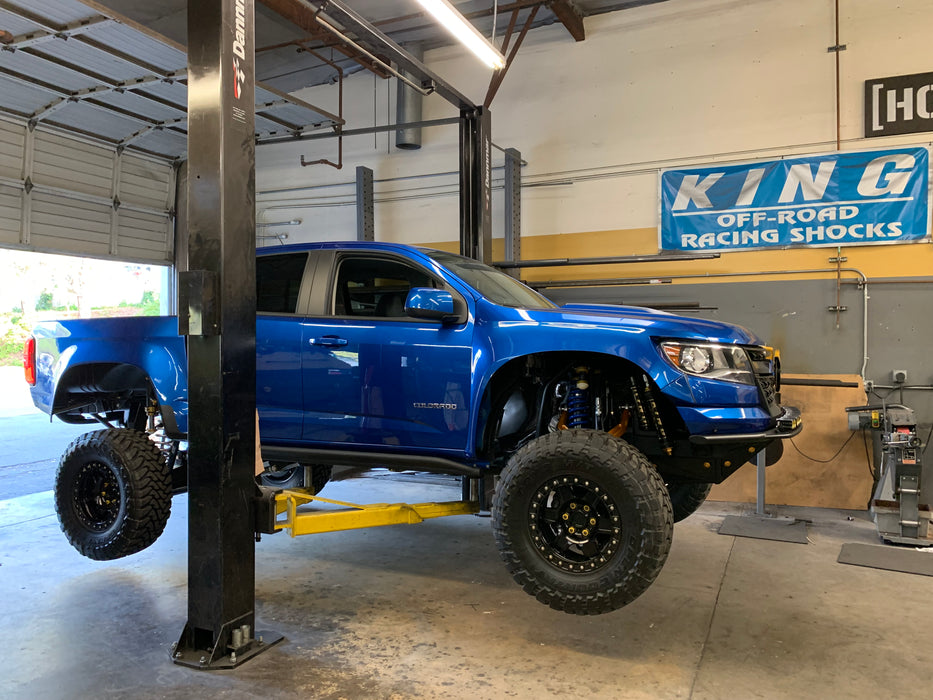

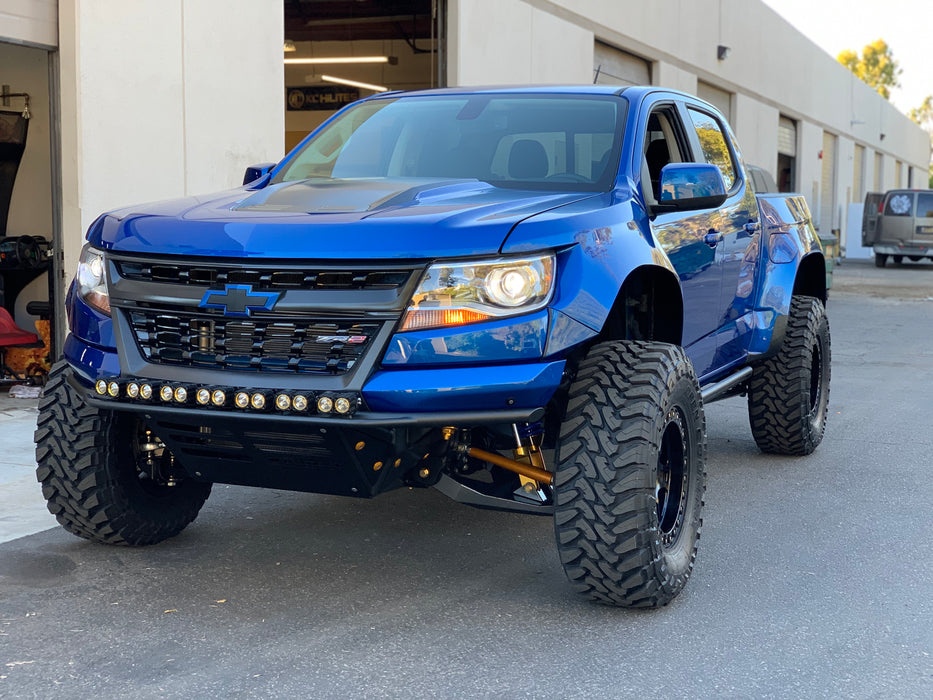

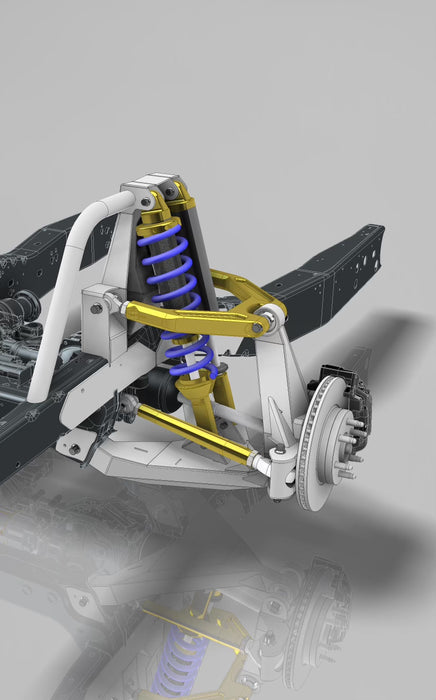

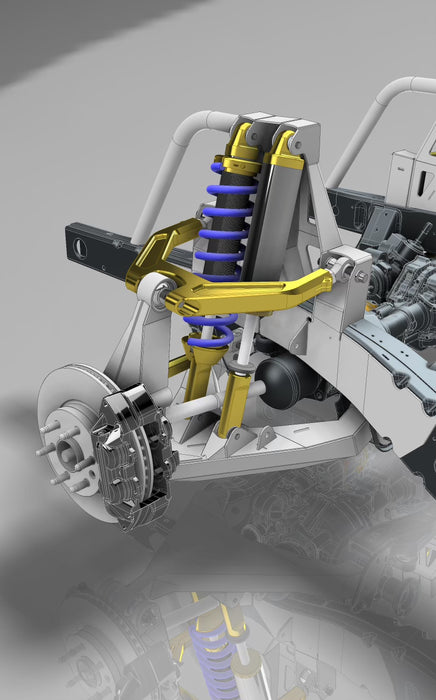

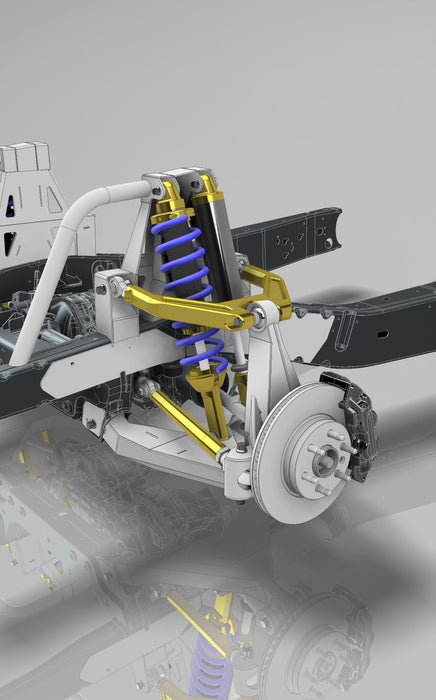

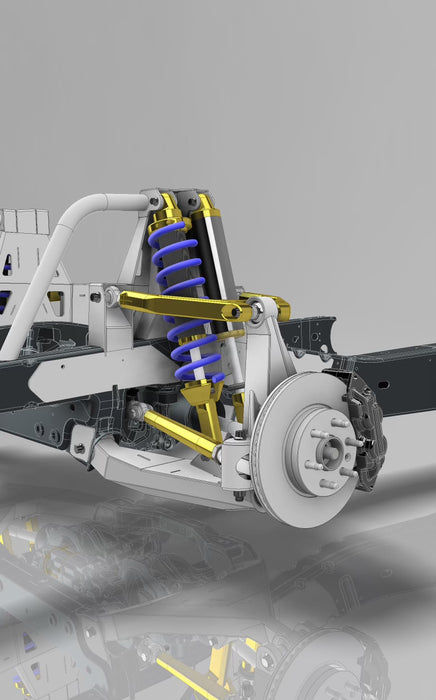

  • Blue ZR2 in pictures has the old style kit, new style kit is the CAD model pictures
