Regular price $9,500.00 Sale

  • Fits 2009 and up F150/Gen1 and Gen2 Raptors
  • Retains 4wd function
  • Eliminates factory steering rack
  • Utilizes Power Steering Solution saginaw steering bax and 6.5'' travel ram assist
  • Yeilds Effortless steering with 40'' tires
  • Zero feedback in the rough
  • Amazing daily driving charactoristics

Includes;

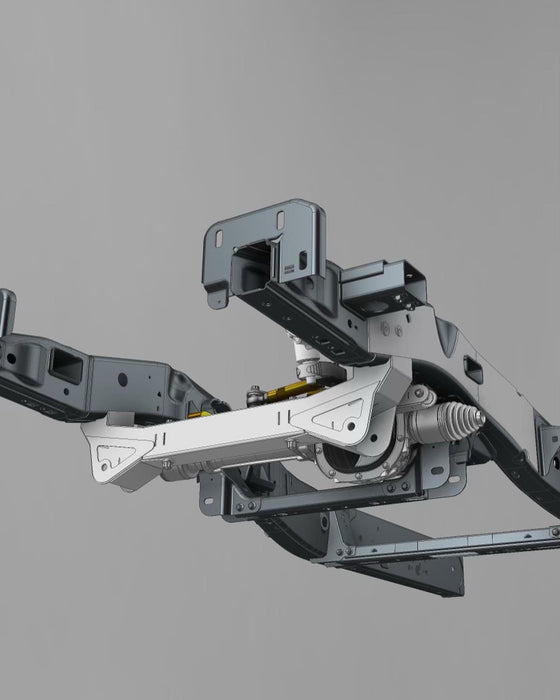

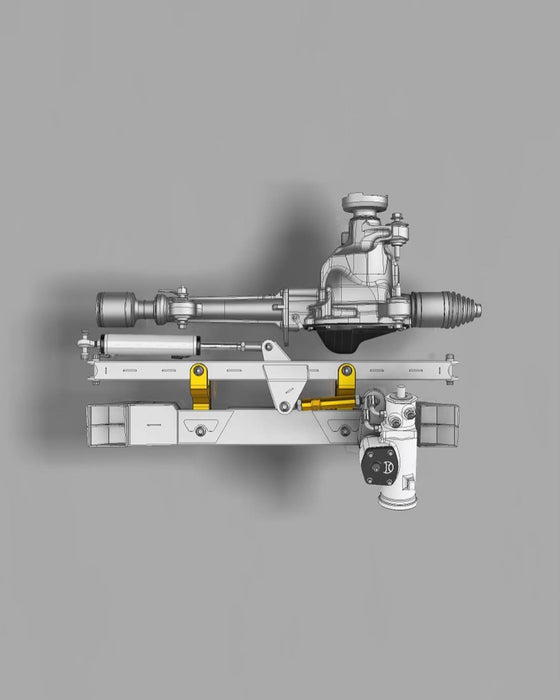

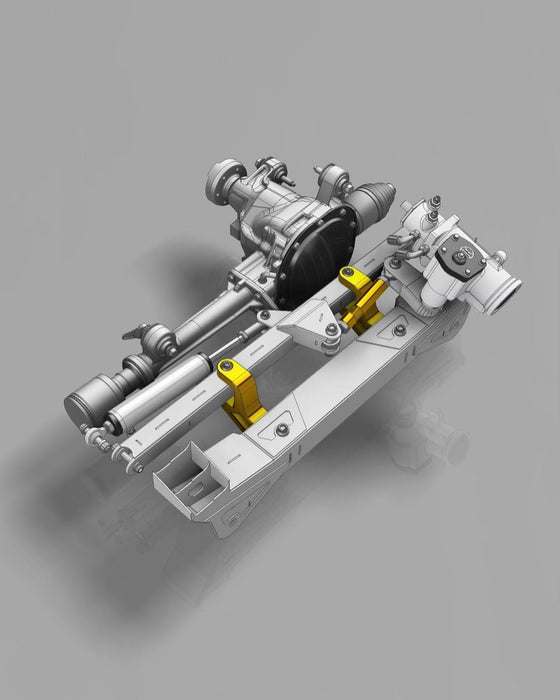

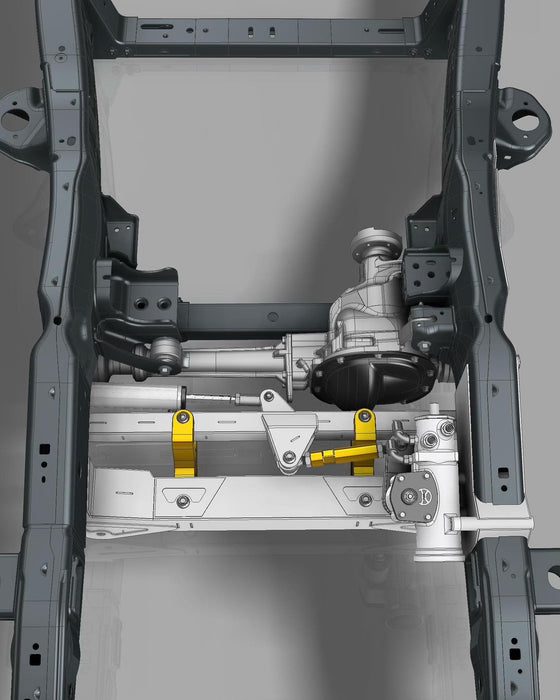

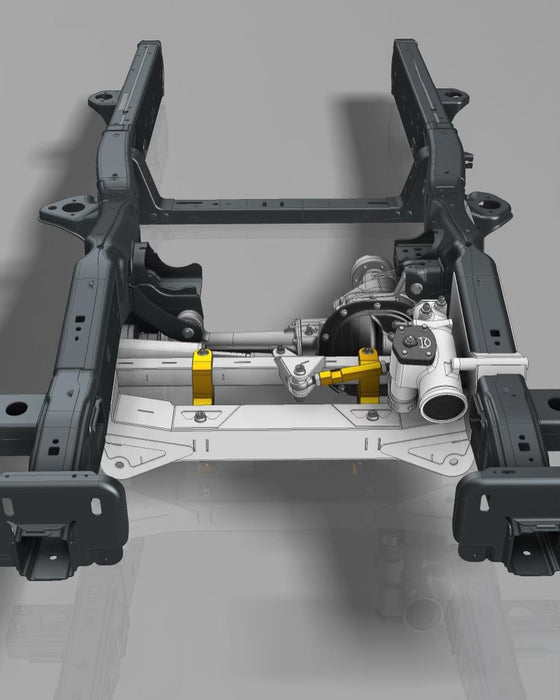

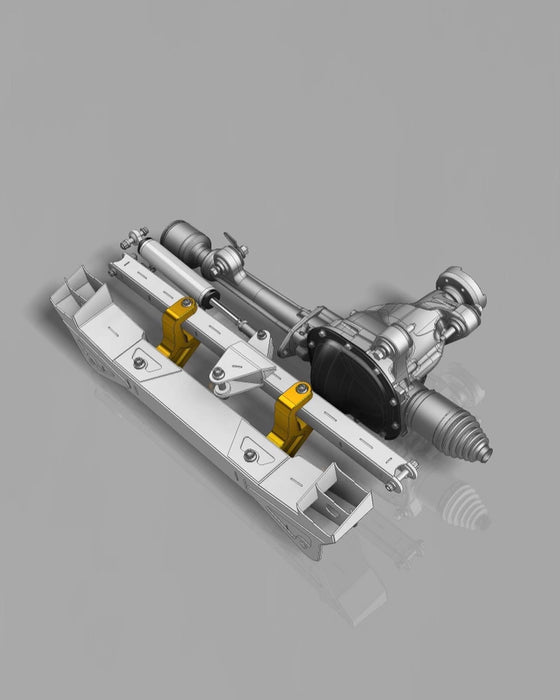

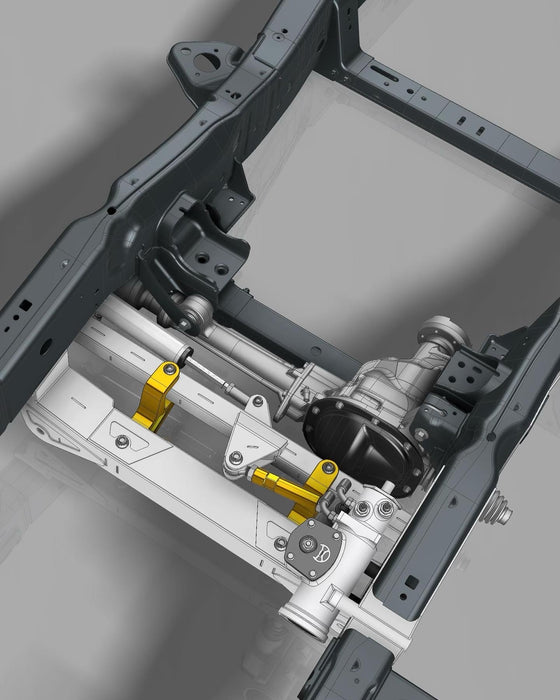

  • Fabricated 4130 tig welded heavy duty front a arm crossmember with integrated steering swinger pivots
  • Fabricated 4130 tig welded steering centerlink
  • Fabricated 4130 tig welded pitman arm
  • Fabricated 4130 tig welded chassis sisde ram mount
  • Fabricated 4130 steering box mounts

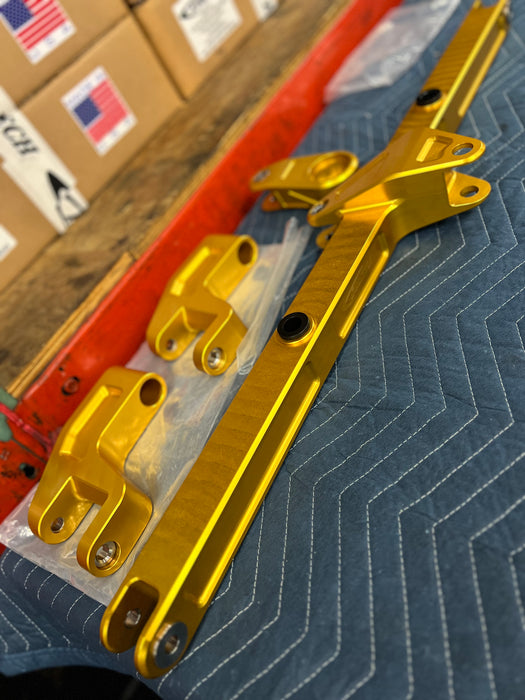

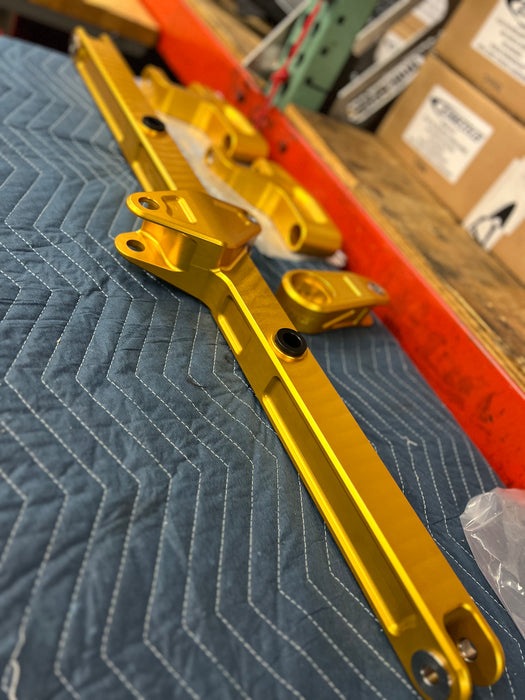

  • CNC machined billet aluminum steering swingers
  • CNC machined billet aluminum drag link
  • Includes all FK Rod ends, bushings, bushing sleeves and RPI 12pt hardware for every pivot point
  • Includes Power Steering Solutions Saginaw box, TC power steering pump w/ pulley and ram assist
  • Does not include and plumbing, power steering pump mount, steering shaft, power steering resi and no cooler. (Too many variables in builds to include these items)
  • Also available is heavy duty fabricated rear a arm crossmember

Installation;

  • Install NOT included
  • This kit requires a lot of fabrication, cutting, grinding, welding, plumbing etc. to install
  • We do offer installations and pricing will vary depending on type of build/ model truck
